Hi, there is a standard ‘Production Ticket’ printed form and I want to modify the layout.

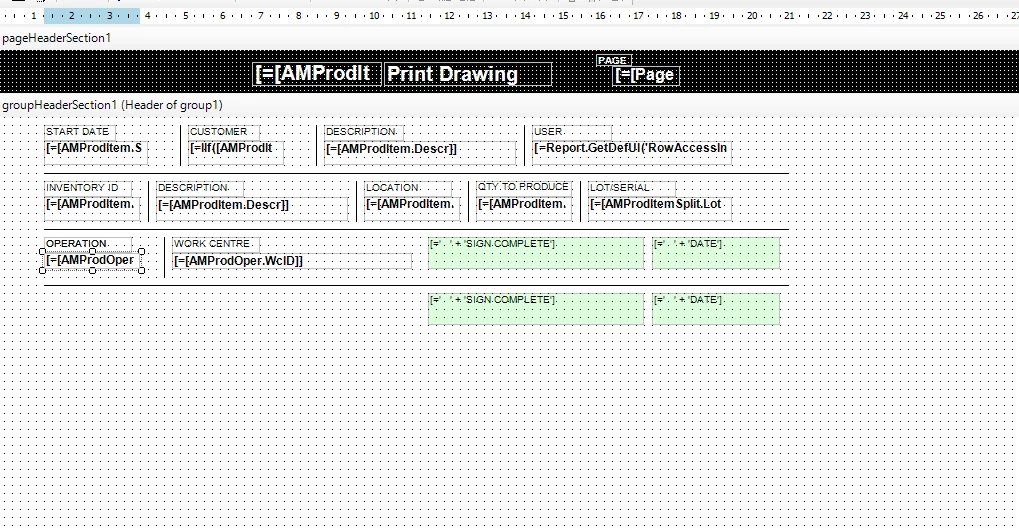

Here is my current design:

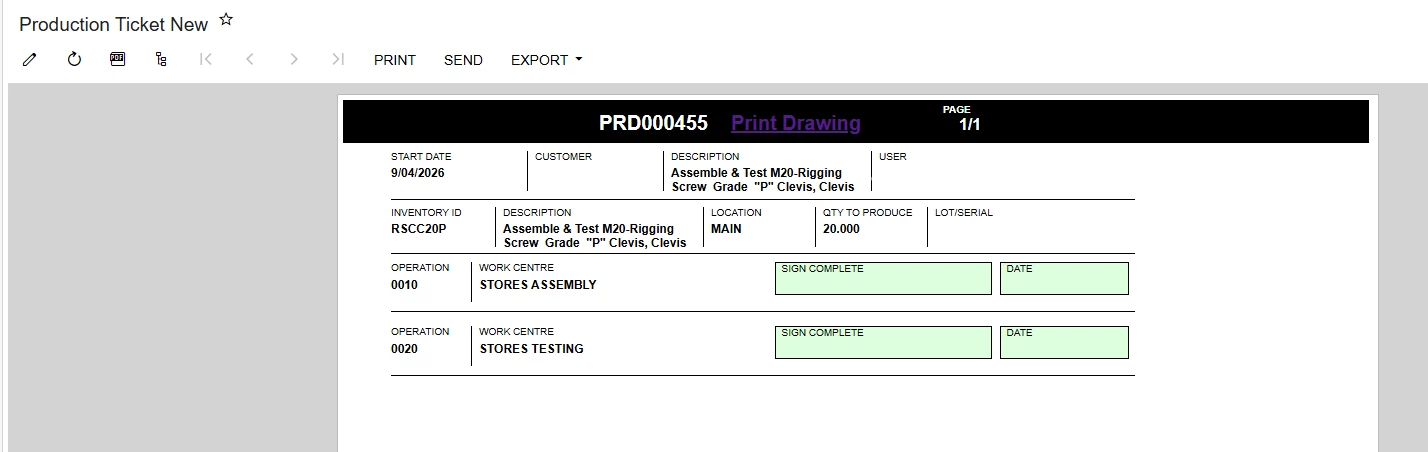

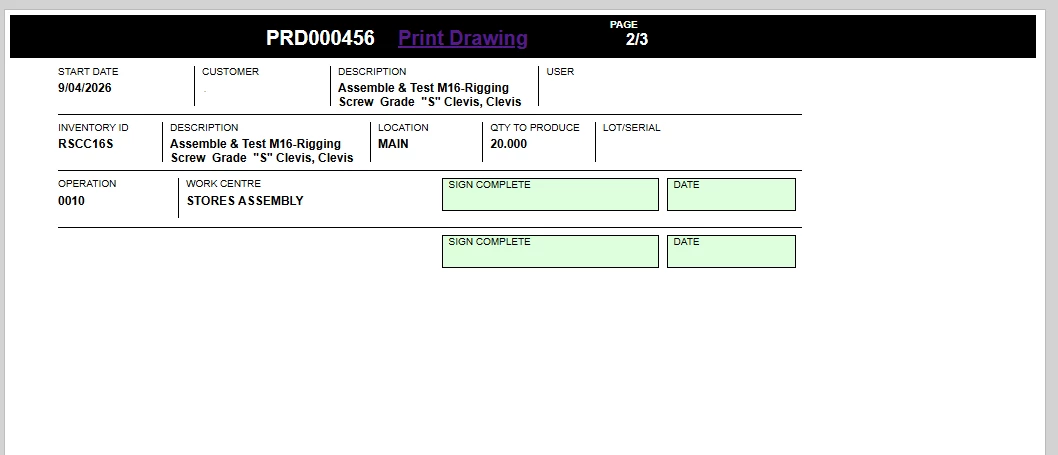

And below is how it shows. However, it only printed the first operation and first Work Centre in the BOM
Below is how I want it to look like. It should include all Operations and Work Centres in the BOM and so as the green boxes and lines should be printed based on how many operations and work centres there are. How can I achieve that?
Best answer by MarkD
I found a solution by creating a grouping for the operations and work centres. It now shows all operations and work centres based on BOM.

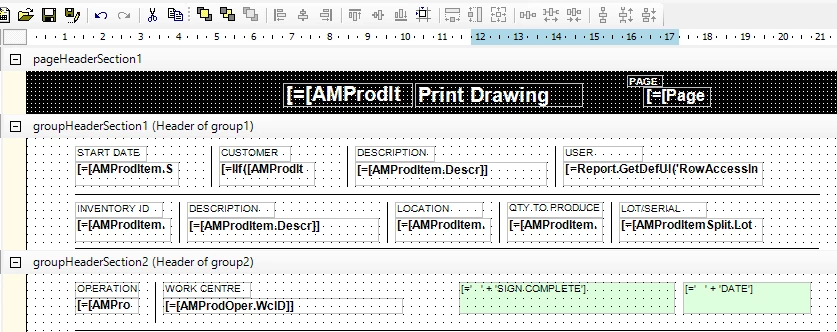

In my screenshot in original post, it is under group1 and now under group2:
Which then gives me the below result:
I found a solution by creating a grouping for the operations and work centres. It now shows all operations and work centres based on BOM.
In my screenshot in original post, it is under group1 and now under group2:
Which then gives me the below result:
Thank you for sharing your solution with the community
