Trouble adding a custom Action to an MUI grid menu in 25R2

​@Joe Schmucker

Have you tried without AddNew: { }

With just index: 0, config: { commandName: "AllocateLine", text: "Allocate Line" }

Hi ​@Joe Schmucker
 Here is a simple approach to adding a custom action to the grid:

import { PXActionState } from "client-controls";

import { APTran } from "src/screens/AP/AP301000/AP301000";

export interface APTran_MyProject extends APTran { }
export class APTran_MyProject {
    MyAction: PXActionState;
}

I already have a line with this in it.

export interface AP301000_ICSAllocations_converted extends AP301000 {}

export class AP301000_ICSAllocations_converted {
  AllocateLine: PXActionState;
}

export interface AP301000_APTran_ICSAllocations_converted extends APTran { }

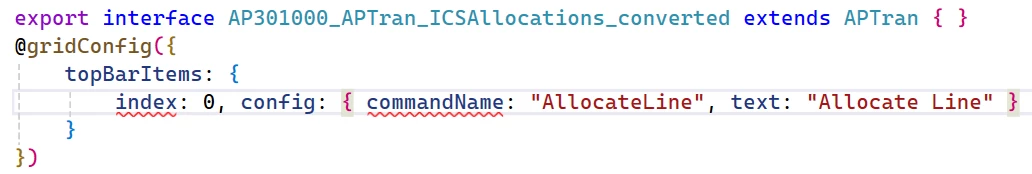

@gridConfig({
    topBarItems: {
        AddNew: { index: 0, config: { commandName: "AllocateLine", text: "Allocate Line" } }
    }
})

If I don’t put my other code in, the action does not show up.

Get errors.

​@Joe Schmucker, you don’t need to define the action additionally in your @gridConfig decorator. Just define the action as shown in my code snippet and remove any other definitions of this action from your .ts file.

​@Joe Schmucker  and note that in your code you define the action in the class that extends the PXScreen (AP301000). This is fine for summary-level actions. For grid actions, however, you need to define them in the class that extends PXView, such as APTran. Here is probably the final code you need:

export interface AP301000_APTran_ICSAllocations_converted extends APTran { }
export class AP301000_APTran_ICSAllocations_converted {
   AllocateLine: PXActionState;
})

​@aleksandrsechin

I tried adding your code adapting it to my project.

I am probably missing something but this is over my head.  I am sorry for being such a noob.

Here is my code for this ts file.  What am I doing wrong?

import {
  PXFieldState,
  PXFieldOptions,
  PXView,
  PXActionState,
  updateDecorator,
  removeDecorator,
  featureInstalled,
  FeaturesSet,
  placeBeforeView,
  placeAfterView,
  placeBeforeProperty,
  placeAfterProperty,
  graphInfo,
  viewInfo,
  gridConfig,
  columnConfig,
  treeConfig,
  controlConfig,
  linkCommand,
  fieldOptions,
  fieldConfig,
  fieldInfo,
  headerDescription,
  autoRefresh,
  mappedToViewField,
  suppressLabel,
  readOnly,
  disabled,
  unbound,
  text,
  multiLine,
  primaryKey,
  type,
  ControlParameter,
  NetType,
  MenuItemRenderType,
  ScrollMode,
  TextAlign,
  GridPreset,
  GridColumnType,
  GridColumnShowHideMode,
  GridColumnDisplayMode,
  GridAutoGrowMode,
  GridPagerMode,
  GridFastFilterVisibility,
  GridNoteFilesShowMode,
  HeaderDescription,
  GridColumnGeneration,
  GridFilterBarVisibility,
  NodeSelectMode,
  PXSelectorMode,
  ApplySuggestionMode,
  ITextEditorControlConfig,
  ITimeSpanConfig,
  ISelectorControlConfig,
  ISegmentedSelectorControlConfig,
  IEditorControlConfig,
  INumberEditorControlConfig,
  IMaskEditorControlConfig,
  IMailEditorControlConfig,
  ILinkEditorControlConfig,
  IDropDownConfig,
  IDatetimeEditControlConfig,
  IColorPickerControlConfig,
  ICheckBoxControlConfig,
  ICalendarControlConfig,
  IBranchSelectorConfig,
  IBarcodeInputControlConfig,
  ITreeSelectorConfig,
  IRichTextEditorConfig,
  IFormulaEditorConfig,
  ICurrencyControlConfig,
  FieldGenerationMode,
} from "client-controls";
import { AP301000, APTran } from "src/screens/AP/AP301000/AP301000";

export interface AP301000_ICSAllocations_converted extends AP301000 {}

export interface AP301000_APTran_ICSAllocations_converted extends APTran { }
export class AP301000_ICSAllocations_converted {
  AllocateLine: PXActionState;
}

export class AP301000_APTran_ICSAllocations_converted {
  @placeAfterProperty("CuryLineAmt")
  @columnConfig({
    editorConfig: {
      allowEdit: true,
      parameters: null,
    },
    width: 140,
  })
  UsrAllocationID: PXFieldState<PXFieldOptions.CommitChanges>;

  @placeAfterProperty("UsrAllocationID")
  DiscPct: PXFieldState<PXFieldOptions.CommitChanges>;

}

​@aleksandrsechin HERO.  Works great!!!!

THANK YOU!!
