Modern UI: How to display a total qty field on SOShipLineSplit popup header (non-database field)

​@ray20 Try to add that field to the Modern UI as I mentioned highlighted above. After you added that to Modern UI, please publish that package.

​@ray20, as ​@ranjithduraisamy72 suggested, you could use low/no-code method with Modern UI Editor:

Modern UI Editor: To Add a Field

Or try UI development guide to create typescript and html manually:

UI Customization Development: To Add Elements to an Acumatica ERP Form

​@RohitRattan88 ​@ranjithduraisamy72   Thank you both for help.
Actually, I have played around with Modern UI for a while and have successfully implemented several screens. I can make fields show on shipmentscreen. However, this particular screen is really tricky for me – the main difficulty is working with the popup panel, and my custom code isn't working correctly.

Could you please provide me with more detailed guidance?

Also, I have a critical issue with publishing: the customization project with Modern UI files cannot be published directly (it throws errors). I have to first publish the Classic version, then compile the SO302000 screen separately using npm.

Any help would be appreciated!

Modern UI Migration 2026R1: Display SOShipment DAC Field in SOShipLineSplit Header Panel | Community


​@ray20

Popup html definition is defined in IN common screens:

In your customization project, I would write my html something like following:

<template>
  <field after="#fsColumnA-LineSplitting [name='UnassignedQty']" name="CUSTOMFIELDNAME"></field>
</template>

Try and see if this helps

​@RohitRattan88  Sorry to forget replying. I tried the code before
<template>
  <field after="#fsColumnA-LineSplitting [name='UnassignedQty']" name="UsrShippedqty"></field>
</template>

It did not work, maybe the the usrshippedqty does not belong to the view which the linesplitting form is binding.

​@ray20

I reviewed the shared files and observed that the Modern UI extension .html and .ts files are currently placed under:

screens/SO/SO302000

Could you please confirm if this path is correct?
Usually Modern UI extensions are placed under a path similar to:

src/development/Screens/SO/SO302000/extensions/

​@ray20

I am pretty sure path issue has been addressed in a different thread.

It did not work, maybe the the usrshippedqty does not belong to the view which the linesplitting form is binding.

in order to reference a field from different view on fieldset, use ViewName.NameName in your html as:

<template>
  <field after="#fsColumnA-LineSplitting [name='UnassignedQty']" name="SOShipmentHeader.Usrshippedqty"></field>
</template>

Try and see if this helps.

​@SaiKrishnaV  Thank you for pointing this out, the files are added to customization package form   \FrontendSources\screen\src\development\screens\SO\SO302000.   In 2026r1, this is not a  problem, other fields are displayed correctly.  Note: my previous uploaded package having name issue, I should name the files with suffix, like SO302000_cust.ts,

​@RohitRattan88  Thank you ,I also tried
<field after="#fsColumnA-LineSplitting [name='UnassignedQty']" name="SOShipmentHeader.Usrshippedqty"></field>
still , not displayed on screen.

​@ray20

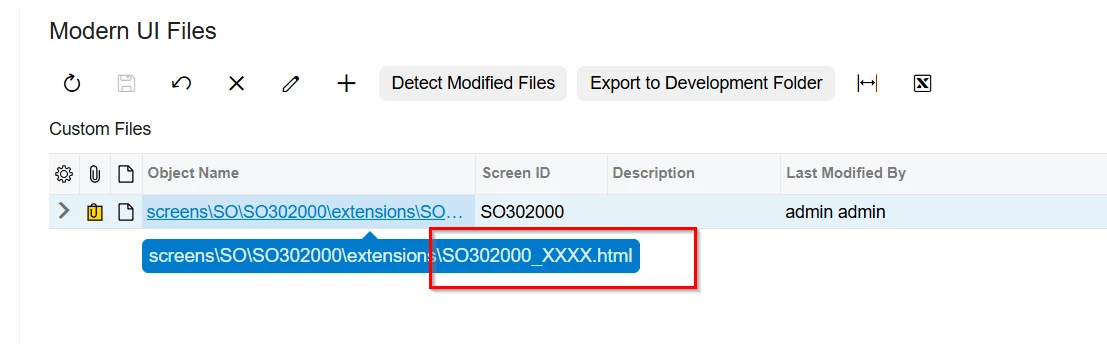

When I tested locally, I kept getting field reference error, turns out my extension name should have been after LineSplit extension as described in:

How can I replace a field from an 'included' fieldset in Modern UI? | Community

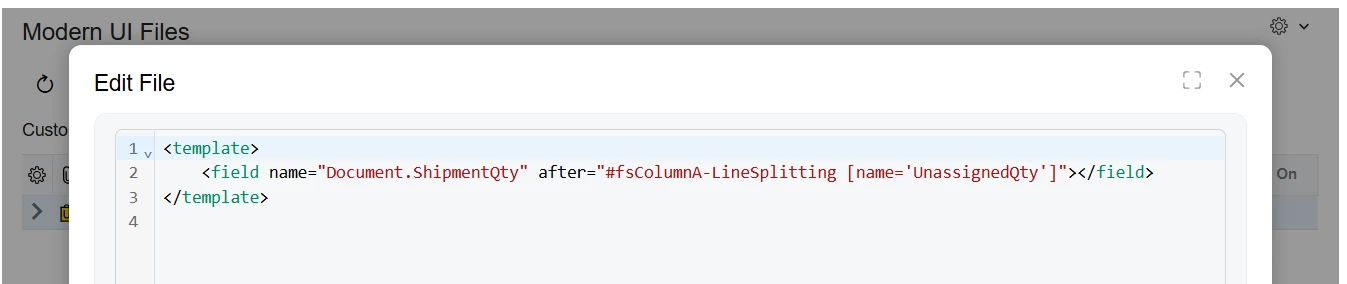

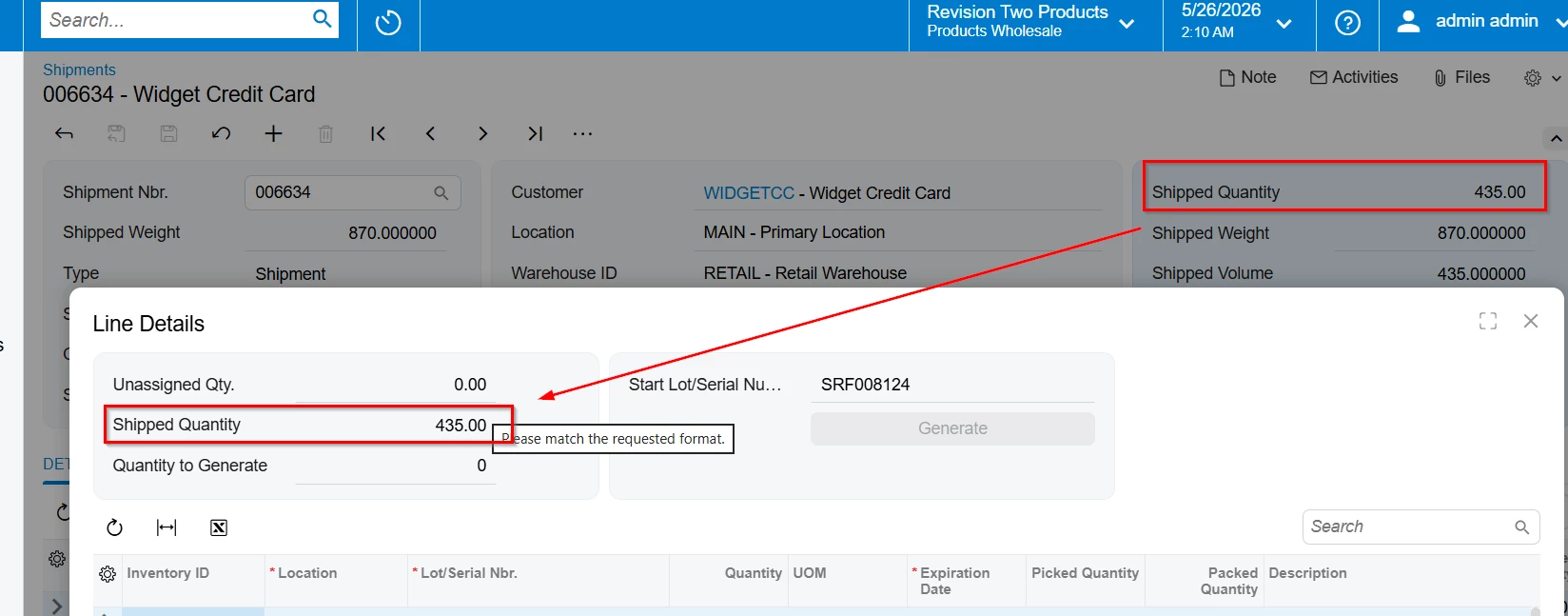

once I changed my extension name, I was able to add a header field to the popup:

Hope it helps.
