Allow Load Records from File on an Attributes tab

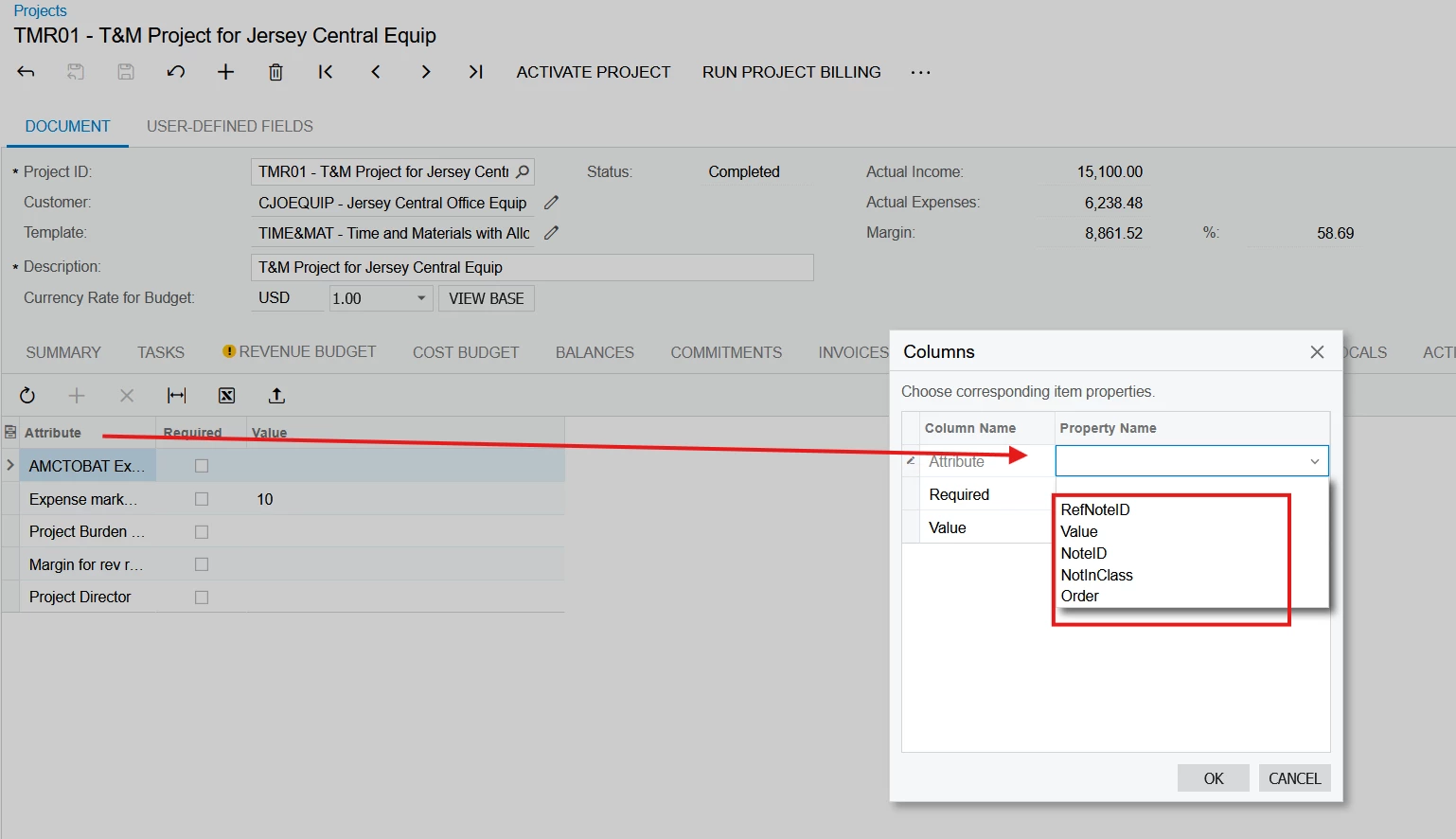

This feels like a really silly suggestion, but isn’t the dropdown in your screenshot the available Excel columns?

We are testing our new AI Assistant and ran your scenario through it, let me know if it helps:

You're doing nearly everything right, and you're very close — the issue you're encountering (not being able to expose the Attribute column for import/export in the Attributes grid on the Projects screen (PM301000)) is a known limitation in how Acumatica handles generic attribute (Answers) grids, because the AttributeID field is not natively marked visible, editable, or importable unless explicitly exposed.

✅ Goal Recap:

Enable Excel import/export (including the Attribute ID) on the Attributes tab of the PM301000 screen.

🚨 Root Cause:

By default, Acumatica's CSAnswers.AttributeID field is:

• Not visible in the UI
• Not editable
• Not marked with [PXImport], so it's skipped during import/export mapping

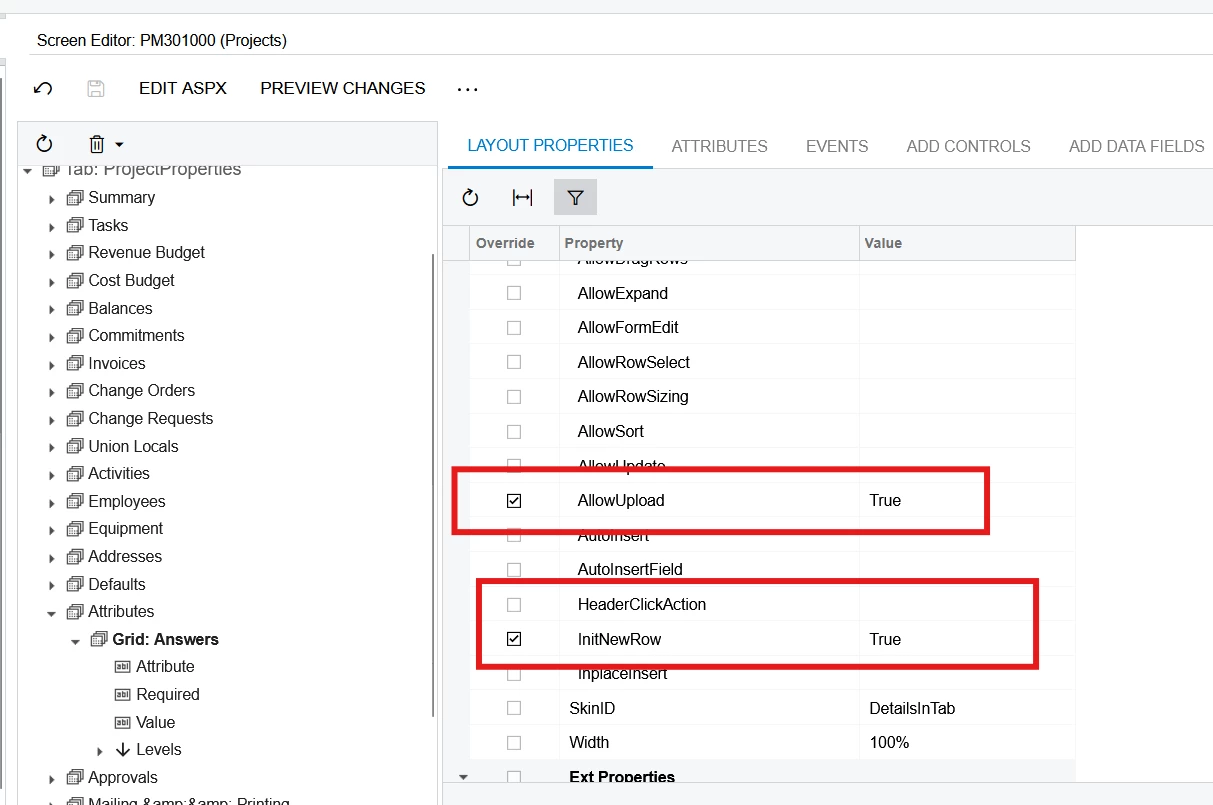

Your layout properties (AllowUpload = True, InitNewRow = True) are correct ✅
Your event handler is partially effective, but to fully expose AttributeID for import, you need:

✅ Solution Checklist:

🔹 Step 1: Use PXImportAttribute on the Graph

[PXImport(typeof(PMProject))]

[PXViewName(Messages.ProjectAnswers)]

public CRAttributeList<PMProject> Answers;

✅ You've done this — perfect.

🔹 Step 2: Make AttributeID Visible and Editable

In your RowSelected or FieldSelecting event:

public void PMProject_RowSelected(PXCache cache, PXRowSelectedEventArgs e)

{

    PXUIFieldAttribute.SetVisible<CSAnswers.attributeID>(Base.Answers.Cache, null, true);

    PXUIFieldAttribute.SetEnabled<CSAnswers.attributeID>(Base.Answers.Cache, null, true);

}

✅ Add SetEnabled too — this is critical for allowing AttributeID to appear as a column for import/export mapping.

🔹 Step 3: Mark the Field as Importable

Acumatica only includes fields in the Excel import/export if they are visible and editable.

To enforce this at the DAC level (if needed), you can add this in a DAC extension (if not already controlled by the base behavior):

[PXUIField(DisplayName = "Attribute", Visible = true, Enabled = true)]

public virtual string AttributeID { get; set; }

If Acumatica's CSAnswers DAC isn't behaving, extend it with a DAC extension and apply the visibility/enabled flags there.

🔹 Step 4: Regenerate the Import Scenario

After doing the above:

1. Go to Import Scenarios
2. Create new or edit existing scenario for PMProject
3. On the mapping step:
   • You should now see AttributeID as an option
   • You can map Column → AttributeID, Value, etc.

🧪 Confirm It Works

Go to the Attributes grid on PM301000:

• Click Export to Excel: Attribute, Value, etc. should now export
• Try importing a test row with a known AttributeID and value — it should apply correctly

💡 Pro Tips

💡 Tip: If your import is failing even after this, make sure the Attribute is already defined in the class-level attribute group assigned to the Project (otherwise it will silently fail to bind).

💡 Tip: You can create a default Import Scenario template just for Attributes and make it available from the screen using the Import Scenarios for Screen setup.

✅ Summary

.

As ​@darylbowman said, that screen is how you map your columns. You should have two columns in your excel sheet; one that matches the name of said attribute and one that has the value you want to assign that attribute.

I was wrong. The Excel columns show up on the left. The data fields on the right.

Oh, you are right. That didn’t even occur to me.
