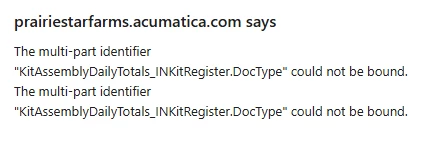

multi part identifier could not be bound - doc type

Would it have anything to do with the display of the doctype changing?  I was able to get results by adding sort conditions vs. the standard values it was trying to reference.  However when I try to filter or resize columns, it throws the not bound error.

Hi ​@mknapke ,

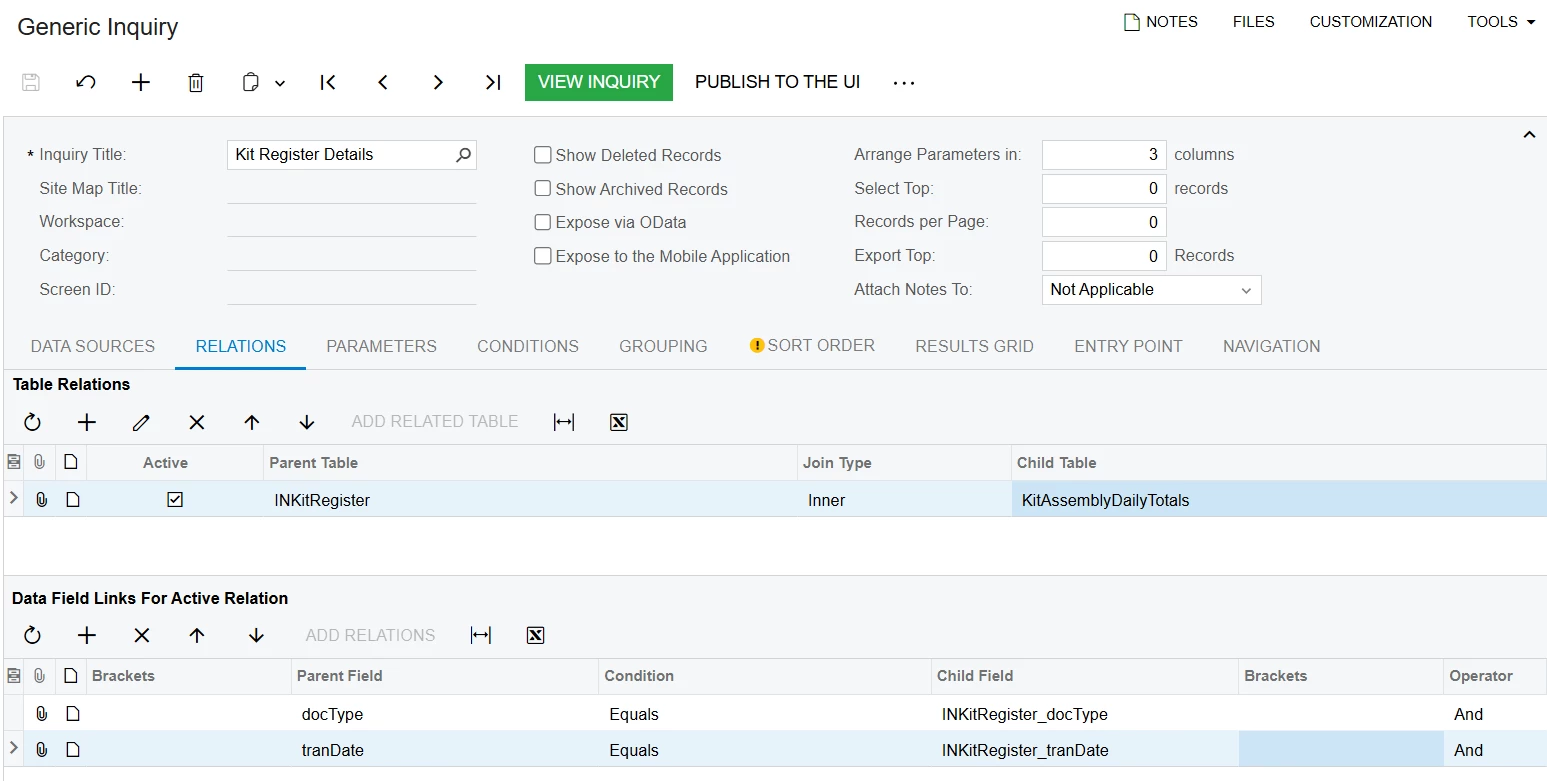

See attached sample query.  This worked for me on version 2024 R2.  Join looks like this:

Hope this helps!

Laura

Thanks Laura.  I’m in 2024 R1 Build 24.107.0004.  I tried adding the doctype to the join but I’m still having issues.  I think the syntax should be [Daily].[INKitRegister_docType] or [Daily_INKitRegister_docType] based on the trace.

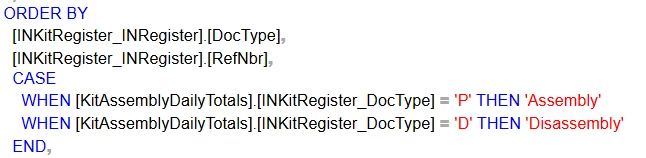

I’m curious what your order by sql statement looks like for the doctype = ‘P’ then ‘Assembly’ ….    Are you able to screenshot?

Hi ​@mknapke ,

The sort looks the same.  You also should be able to import the GI that I attached and give that a try to see if it works for you.

SELECT
  TOP (17) [INKitRegister_INRegister].[DocType] AS [INKitRegister_DocType],
  [INKitRegister_INRegister].[RefNbr] AS [INKitRegister_RefNbr],
  [INKitRegister_INRegister].[TranDate] AS [INKitRegister_TranDate],
  [INKitRegister_INRegister].[NoteID] AS [INKitRegister_NoteID],
  [INKitRegister_INTran].[DocType] AS [INKitRegister_TranDocType],
  [INKitRegister_INTran].[RefNbr] AS [INKitRegister_TranRefNbr],
  [INKitRegister_INTran].[TranDate] AS [INKitRegister_TranTranDate],
  [INKitRegister_INTran].[Qty] AS [INKitRegister_Qty],
  [INKitRegister_INTran].[TranAmt] AS [INKitRegister_TranAmt],
  [KitAssemblyDailyTotals].[INKitRegister_DocType] AS [KitAssemblyDailyTotals_INKitRegister_DocType],
  [KitAssemblyDailyTotals].[INKitRegister_RefNbr] AS [KitAssemblyDailyTotals_INKitRegister_RefNbr],
  [KitAssemblyDailyTotals].[INKitRegister_NoteID] AS [KitAssemblyDailyTotals_INKitRegister_NoteID],
  [KitAssemblyDailyTotals].[INKitRegister_tranAmt] AS [KitAssemblyDailyTotals_INKitRegister_tranAmt],
  [KitAssemblyDailyTotals].[INKitRegister_qty] AS [KitAssemblyDailyTotals_INKitRegister_qty],
  [KitAssemblyDailyTotals].[INKitRegister_TranDocType] AS [KitAssemblyDailyTotals_INKitRegister_TranDocType],
  [KitAssemblyDailyTotals].[INKitRegister_TranRefNbr] AS [KitAssemblyDailyTotals_INKitRegister_TranRefNbr]
FROM
  (
    [INRegister] [INKitRegister_INRegister]
    INNER JOIN [INTran] [INKitRegister_INTran] ON ([INKitRegister_INTran].[CompanyID] = 2)
    AND (
      [INKitRegister_INTran].[BranchID] IS NULL
      OR (
        [INKitRegister_INTran].[BranchID] IN (22, 16, 20, 17, 21)
      )
    )
    AND (
      [INKitRegister_INTran].[DocType] = [INKitRegister_INRegister].[DocType]
      AND [INKitRegister_INTran].[RefNbr] = [INKitRegister_INRegister].[RefNbr]
      AND [INKitRegister_INTran].[LineNbr] = [INKitRegister_INRegister].[KitLineNbr]
    )
  )
  INNER JOIN (
    SELECT
      [INKitRegister_INRegister].[DocType] AS [INKitRegister_DocType],
      MAX([INKitRegister_INRegister].[RefNbr]) AS [INKitRegister_RefNbr],
      [INKitRegister_INRegister].[TranDate] AS [INKitRegister_TranDate],
      MAX([INKitRegister_INRegister].[NoteID]) AS [INKitRegister_NoteID],
      MAX([INKitRegister_INTran].[DocType]) AS [INKitRegister_TranDocType],
      MAX([INKitRegister_INTran].[RefNbr]) AS [INKitRegister_TranRefNbr],
      SUM([INKitRegister_INTran].[Qty]) AS [INKitRegister_Qty],
      SUM([INKitRegister_INTran].[TranAmt]) AS [INKitRegister_TranAmt]
    FROM
      (
        [INRegister] [INKitRegister_INRegister]
        INNER JOIN [INTran] [INKitRegister_INTran] ON ([INKitRegister_INTran].[CompanyID] = 2)
        AND (
          [INKitRegister_INTran].[BranchID] IS NULL
          OR (
            [INKitRegister_INTran].[BranchID] IN (22, 16, 20, 17, 21)
          )
        )
        AND (
          [INKitRegister_INTran].[DocType] = [INKitRegister_INRegister].[DocType]
          AND [INKitRegister_INTran].[RefNbr] = [INKitRegister_INRegister].[RefNbr]
          AND [INKitRegister_INTran].[LineNbr] = [INKitRegister_INRegister].[KitLineNbr]
        )
      )
    WHERE
      ([INKitRegister_INRegister].[CompanyID] = 2)
      AND (
        [INKitRegister_INRegister].[BranchID] IS NULL
        OR (
          [INKitRegister_INRegister].[BranchID] IN (22, 16, 20, 17, 21)
        )
      )
    GROUP BY
      [INKitRegister_INRegister].[DocType],
      [INKitRegister_INRegister].[TranDate]
  ) [KitAssemblyDailyTotals] ON (
    [INKitRegister_INRegister].[DocType] = [KitAssemblyDailyTotals].[INKitRegister_docType]
    AND [INKitRegister_INRegister].[TranDate] = [KitAssemblyDailyTotals].[INKitRegister_tranDate]
  )
WHERE
  ([INKitRegister_INRegister].[CompanyID] = 2)
  AND (
    [INKitRegister_INRegister].[BranchID] IS NULL
    OR (
      [INKitRegister_INRegister].[BranchID] IN (22, 16, 20, 17, 21)
    )
  )
ORDER BY
  [INKitRegister_INRegister].[DocType],
  [INKitRegister_INRegister].[RefNbr],
  CASE
    WHEN [KitAssemblyDailyTotals].[INKitRegister_DocType] = 'P' THEN 'Assembly'
    WHEN [KitAssemblyDailyTotals].[INKitRegister_DocType] = 'D' THEN 'Disassembly'
  END,
  [KitAssemblyDailyTotals_INKitRegister_RefNbr] OPTION (OPTIMIZE FOR UNKNOWN)

Laura

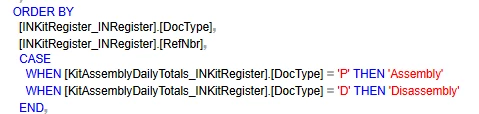

I receive the same error with your XML file.  The syntax is different for the [KitAssemblyDailyTotals_INKitRegister].[DocType] vs. [KitAssemblyDailyTotals].[INKitRegister_DocType] in your screenshot.  Do you think this was solved for R2?  Or would it be related to our data / instance?

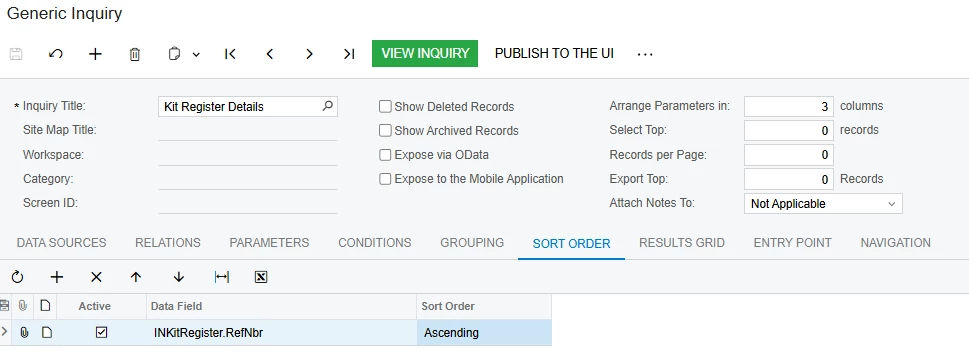

It will run when I define a sort condition.
