Need Help Replacing FSxARTran Functionality

public delegate IEnumerable InvoiceAppointmentDelegate(PXAdapter adapter);
[PXOverride]
public IEnumerable InvoiceAppointment(PXAdapter adapter, InvoiceAppointmentDelegate baseMethod)
{

}

public delegate IEnumerable InvoiceAppointmentDelegate(PXAdapter adapter);
[PXOverride]
public IEnumerable InvoiceAppointment(PXAdapter adapter, InvoiceAppointmentDelegate baseMethod)
{

}

Well, unfortunately, when I try this I get this error:

The System.Collections.IEnumerable InvoiceAppointment(PX.Data.PXAdapter) method in the ASGCORE.Features.SelectivePrint.AppointmentEntry_Extension graph extension is marked as [PXOverride], but no original method with this name has been found in PXGraph.

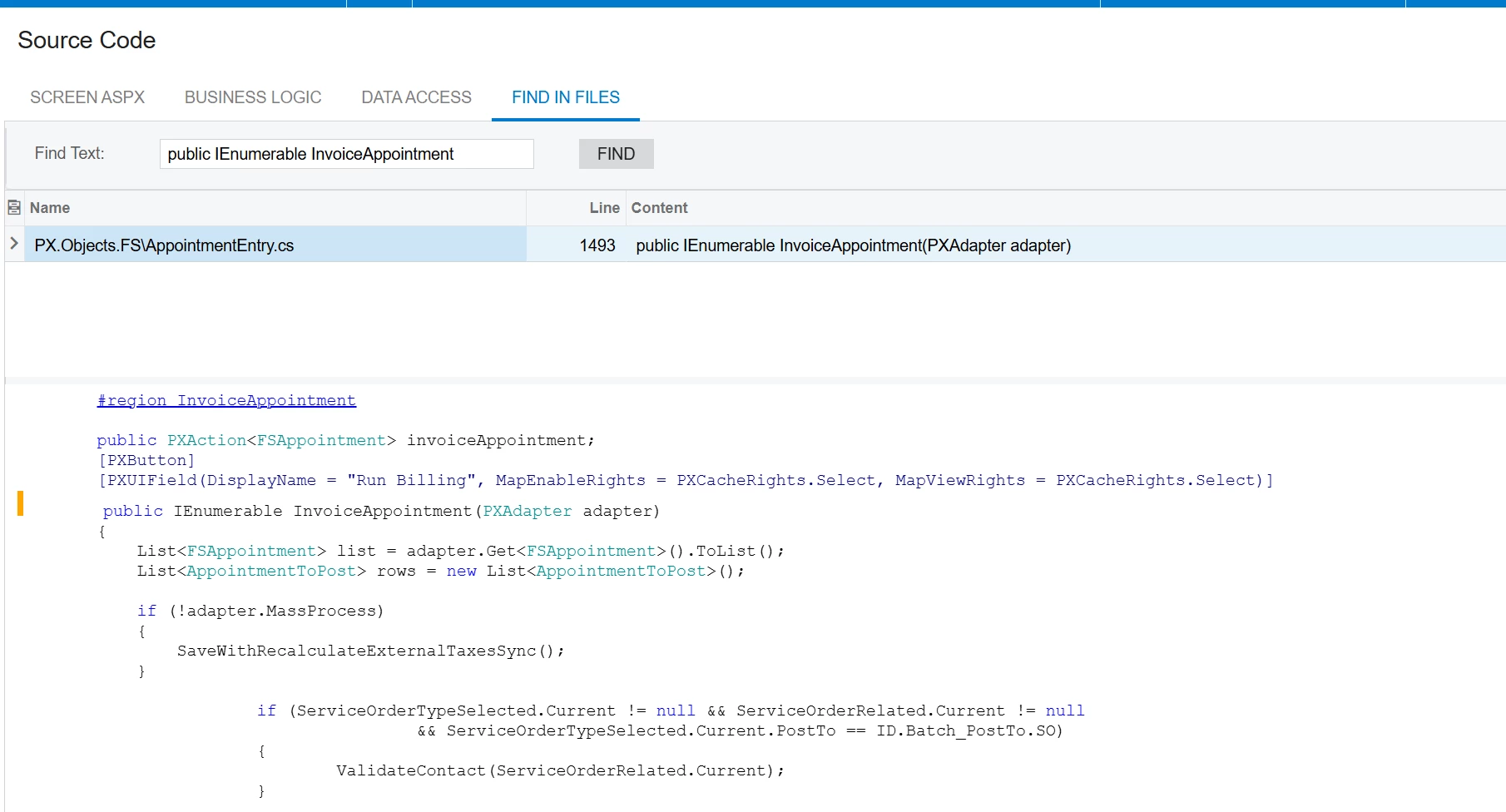

And yet this method DOES exist in AppointmentEntry graph, according to the source code:

I tried it with the signature:

        public delegate IEnumerable InvoiceAppointmentDelegate(PXAdapter adapter);
        // Acuminator disable once PX1096 PXOverrideSignatureMismatch [Justification]
        [PXOverride]
        public IEnumerable InvoiceAppointment(PXAdapter adapter)

As well as the signature:

        public delegate IEnumerable InvoiceAppointmentDelegate(PXAdapter adapter);
        // Acuminator disable once PX1096 PXOverrideSignatureMismatch [Needed baseMethod]
        [PXOverride]
        public IEnumerable InvoiceAppointment(PXAdapter adapter, InvoiceAppointmentDelegate baseMethod)
        {

Both give the same error.

What am I missing?

I’ve written a lot of override methods, and I’ve never encountered this before, but I’m getting the same issue (in 24 R1). ​@Dmitrii Naumov

Yeah, I’ve tested and it seems broken. Reported for further investigation

​@darylbowman ​@mjgrice32 the method is not virtual, so it cannot be overridden like that.

You can still override it like that though:

 public PXAction<FSAppointment> invoiceAppointment;
 [PXButton]
 [PXUIField(DisplayName = "Run Billing", MapEnableRights = PXCacheRights.Select, MapViewRights = PXCacheRights.Select)]
 public IEnumerable InvoiceAppointment(PXAdapter adapter)
 {

//your code

}

Thanks… I will play with this. I need to add the baseMethod to it as Daryl showed, but that seems to be acceptable, as I compile with no errors...

Since it’s public, you can probably just call the method, although I’m not sure. It may also end in a loop / stack overflow:

public PXAction<FSAppointment> invoiceAppointment;
[PXButton]
[PXUIField(DisplayName = "Run Billing", MapEnableRights = PXCacheRights.Select, MapViewRights = PXCacheRights.Select)]
public IEnumerable InvoiceAppointment(PXAdapter adapter)
{
    var result = Base.InvoiceAppointment(adapter);
}

Daryl,

I used your code, and it lets me execute Base.InvoiceAppointment(adapter); (And surprisingly, did not create an infinite loop. It soky advanced to the next line of code...)

Unfortunately, the Result is simply a list of Appointments (which in my case is always just the one appointment I am running the billing from), and that won’t help me.

I need the ARTRan items created via the InvoiceAppointment method, so I can set the extended field (printFlag) in ARTran.

Restating the above, I cannot accomplish this in the ARInvoiceEntry graph, since there is no RefNbr attached to the items on the update or insert events. (It is simply <New>) So I have no way of finding the Appointment’s FSSODet to see what the appointment had the extended field (printFlag) set to.

I need someway of getting the ARTran and the Appointment that created it together in a method so I can set the print flag. And I ahve to do it before my user sees the ARTran in the ARInvoiceEntry so they will know their printFlag has carried through correctly.

Any idea at all how I can accomplish this feat?

@Dmitrii Naumov

​@darylbowman

Then try this:

public PXAction<FSAppointment> invoiceAppointment;
[PXButton]
[PXUIField(DisplayName = "Run Billing", MapEnableRights = PXCacheRights.Select, MapViewRights = PXCacheRights.Select)]
public IEnumerable InvoiceAppointment(PXAdapter adapter)
{
    PXGraph.InstanceCreated.AddHandler<ARInvoiceEntry>((g) =>
    {
        g.RowPersisting.AddHandler<ARInvoice>((cache, e) =>
        {
            var invoiceGraph = cache.Graph as ARInvoiceEntry;
            var transactions = invoiceGraph.Transactions.Select()?.FirstTableItems;

            ARInvoice invoice = (ARInvoice)e.Row;

            foreach (ARTran tran in transactions)
            {
                // Can use SetValueExt just like regular event handlers
                cache.SetValueExt<ARInvoiceExt.usrPrintFlag>(tran, false);
            }
        });
    });

    var result = Base.InvoiceAppointment(adapter);
}

I didn’t test this at all, but this is something I would try. Obviously update the logic to do what you’re trying to do.

public PXAction<FSAppointment> invoiceAppointment;
[PXButton]
[PXUIField(DisplayName = "Run Billing", MapEnableRights = PXCacheRights.Select, MapViewRights = PXCacheRights.Select)]
public IEnumerable InvoiceAppointment(PXAdapter adapter)
{
    PXGraph.InstanceCreated.AddHandler<ARInvoiceEntry>((g) =>
    {
        g.RowPersisting.AddHandler<ARInvoice>((cache, e) =>
        {
            var invoiceGraph = cache.Graph as ARInvoiceEntry;
            var transactions = invoiceGraph.Transactions.Select()?.FirstTableItems;

            ARInvoice invoice = (ARInvoice)e.Row;

            foreach (ARTran tran in transactions)
            {
                // Can use SetValueExt just like regular event handlers
                cache.SetValueExt<ARInvoiceExt.usrPrintFlag>(tran, false);
            }
        });
    });

    var result = Base.InvoiceAppointment(adapter);
}

​@darylbowman I tried this, but the handler is never hit. Everything compiles fine, but when I add a breakpoint, it never hits, and it doesn’t seem to be working when it comes to setting my flag.

Any idea what might cause that?

There is an assumptions here that an instance of ARInvoiceEntry is created. I couldn't trace the code to a specific graph. You could try random graphs or maybe you're better at reading source code.

There's also an assumption that the graph is being saved. I understood that from your previous comments. If not, another event handler could be used.

OK, I couldn’t figure out how to implement this solution (which was frustrating because, I think there is a way.)

I went back to the use case which is:

When an “Run Billing” is selected from an appointment, it creates an Invoice, which is a master record of ARInvoice, with detail records copied from the AppointmentDet to ARTran records. There is a custom field on the AppointmentDet record called UsrPrintFlag, which the user may have set. I need to make sure the values of the AppointmentDet record’s UsrPrintFlag is copied to the ARTran’s usr field of the same name.

The challenge was that when the AppointmentDet records are first copied over, the Invoice does not have a reference number, and the ARTRan records do not have most of the fields. The Appointment is not part of the ARInvoiceEntry graph,and there is no cache or link is available to find the Apppintment that created the ARInvoice. Therefore, overriding the RowInserted method is useless. (previously there was a projection called FSxARTran which carried the Appointment information, but it was deprecated and deleted several releases ago.)

My solution is to put the logic in

Events.FieldUpdated<ARTran, ARTran.inventoryID> e

I reasoned that if they are creating a sparse ARTRan record, eventually the underlying method would have to copy the InventoryID over, since it would be required in the Invoice.

It isn’t nice and clean, but it gives me a handle on things.

Fortunately, the CustomerID and LineNbr are fields carried over into the sparse ARTRan records created by Insert. I also know that the “RUN BILLING” option does not appear to the user until the Appointment is closed. When the InventoryID is given to me, I am able to look up all “closed” appointments for the customer, and start working through them one by one (starting at the newest appointment which is probably the one we want.)

I then work though the AppointmentDet lines, matching the Inventory ID and the LineNbr. If those match, I consider it a hit, and I use that AppointmentDet values to set the User defined fields as needed.

I can come up with some scenarios where this theoretically might fail,  but those don’t seem like reasonable possibilities in real life.

In case anyone else runs into this, here is some sample code:

        protected virtual void _(Events.FieldUpdated<ARTran, ARTran.inventoryID> e)
        {
            if (e is null) return;
            if (!IsPrintFeatureEnabledForFS()) return;  // if not active, just leave

            var tran = e.Row as ARTran;
            // Best I can determine, if an Invoice is created for a SALES ORDER
            // the SOOrderType in ARTran is "SO" -- if it is a SERVICE ORDER
            // SOOrderType will == NULL
            if (tran.SOOrderType != null)
                return;
            ARTranExt rowExt = e.Row.GetExtension<ARTranExt>();
            if (rowExt == null) return;
            if (e.OldValue is null)
            {
                if (IsPrintFeatureEnabledForFS())
                {
// Add Check to see what ScreenID created this record. We only care about FS300200
                    if (tran.CreatedByScreenID == "FS300200")
                    {
                        var ApptTransaction = FindMatchingAppointmentDetail(tran.CustomerID, tran.LineNbr, tran.InventoryID);
                        if (ApptTransaction != null)
                        {
                            FSAppointmentDetExt apDetExt = ApptTransaction.GetExtension<FSAppointmentDetExt>();
                            rowExt.UsrASGPrintCheck = apDetExt?.UsrASGPrintCheck;
                        }
                    }

                }
              }
           }

And the magic function to find the appointment:

        private FSAppointmentDet FindMatchingAppointmentDetail(int? CustomerID, int? LineNbr, int? InventoryID)
        {

            // We want to see the Apppointment closed since that is where they "Run Billing" From
            var appointments = SelectFrom<FSAppointment>
                .Where<FSAppointment.customerID.IsEqual<@P.AsInt>
                    .And<FSAppointment.status.IsEqual<@P.AsString>>>
                .OrderBy<Desc<FSAppointment.actualDateTimeEnd>>
                .View.Select(Base, CustomerID, "Z");  // "Z" for closed status, Billing would be 'B'


            foreach (PXResult<FSAppointment> result in appointments)
            {
                FSAppointment fsAppointment = result;
                PXTrace.WriteInformation($"Checking Appointment: {fsAppointment.AppointmentID} (Date: {fsAppointment.ActualDateTimeEnd})");

                // Get all appointment details for this appointment

                var appointmentDetails = PXSelect<FSAppointmentDet,
                      Where<FSAppointmentDet.appointmentID, Equal<Required<FSAppointment.appointmentID>>,
                      And<FSAppointmentDet.lineNbr, Equal<Required<FSAppointmentDet.lineNbr>>>>>
                      .Select(Base, fsAppointment.AppointmentID, LineNbr);


                foreach (FSAppointmentDet fsAppointmentDet in appointmentDetails)
                {
                    // Check if LineNbr matches and InventoryID does, we have a match. This could possibly
                    // give us a false positive, but it seems HIGHLY unlikely.

                    if (fsAppointmentDet.InventoryID == InventoryID)
                    {
                        PXTrace.WriteInformation($"Match found! AppointmentID: {fsAppointment.AppointmentID}, LineNbr: {fsAppointmentDet.LineNbr}");
                        return fsAppointmentDet; // Return the first match (newest first)
                    }
                }
            }
            PXTrace.WriteWarning("No matching appointment detail found.");
            return null; // No match found
        }

If anyone can think of a better / cleaner way, LMK.

Otherwise I’ll call this the answer and move on for now.

Thanks to everyone who took a shot at this. I appreciate the help this community provides!

Thank you for sharing your solution with the community ​@mjgrice32!
