Modify Selector in Materials Screen (AM300000)

Hi ​@TharidhiP
Override field on screen level try like below:
// In your DAC Extension
[PXSelector(
    typeof(Search<INLotSerialStatus.lotSerialNbr,
        Where<INLotSerialStatus.inventoryID, Equal<Current<INRegister.inventoryID>>,
            And<INLotSerialStatus.siteID, Equal<Current<INRegister.siteID>>,
            And<INLotSerialStatus.qtyOnHand, Greater<decimal0>>>>>),
    typeof(INLotSerialStatus.lotSerialNbr),
    typeof(INLotSerialStatus.qtyOnHand),
    typeof(INLotSerialStatus.expireDate),
    SubstituteKey = typeof(INLotSerialStatus.lotSerialNbr))]

If not work try with below approach:


public class YourGraphExtension : PXGraphExtension<YourBaseGraph>
{
    protected virtual void _(Events.FieldSelecting<YourDAC.parentLotSerialNbr> e)
    {
        var cache = e.Cache;
        var row = e.Row as YourDAC;
        if (row == null) return;

        PXSelector selector = PXSelectorAttribute.GetAttribute<PXSelectorAttribute>(cache, row, nameof(YourDAC.parentLotSerialNbr));
        if (selector == null) return;

        // Modify the selector's search to include quantity filtering
        selector.SetHandler(
            typeof(Search<INLotSerialStatus.lotSerialNbr,
                Where<INLotSerialStatus.inventoryID, Equal<Current<INRegister.inventoryID>>,
                    And<INLotSerialStatus.siteID, Equal<Current<INRegister.siteID>>,
                    And<INLotSerialStatus.qtyOnHand, Greater<decimal0>>>>>));
    }
}

Hope it will work.

Hi ​@noorula77 thank you for your suggestions! Can I also add logic to keep the parent/ lot serial nbr editable after release using the FieldSelecting event handler you have added?

Field control needs to be modified in the RowSelected event handler.

 But for the original problem, you should be able to add a PXRestrictor attribute to the DAC field on CacheAttached:

[PXMergeAttributes(Method = MergeMethod.Append)][PXRestrictor(typeof(Where<INLotSerialStatus.qtyOnHand.IsGreater<decimal0>>), "Qty On Hand is zero")]
protected virtual void _(Events.CacheAttached<INLotSerialStatus.parentLotSerialNbr> e) { }

This is a less heavy-handed approach and exactly what the PXRestrictor is for.

Thank you for the suggestion! ​@darylbowman

Hi ​@darylbowman I tried using the restrictor for this as below

[PXMergeAttributes(Method = MergeMethod.Append)][PXRestrictor(typeof(Where<AMProdItemSplit.qtyRemaining.IsGreater<decimal0>>), "Qty Remaining is zero")]
protected virtual void _(Events.CacheAttached<AMMTran.parentLotSerialNbr> e) { }

but the filtration doesn’t happen do I need to set any other properties on this field?

Thanks!

Apologies. I didn’t do my research and assumed from the code in ​@noorula77’s answer that the selector was based on INLotSerialStatus, but it’s not. It’s based on AMProdItemSplit. A PXRestrictor can only use statements of tables already joined in the original selector. Furthermore, the actual selector is managed by the ParentLotSerialNbrAttribute which uses an ugly compose statement. I’ve tried to modify it to join the INLotSerialStatus table and only return QtyOnHand greater than zero:

using PX.Common;
using PX.Data;
using PX.Objects.AM;
using PX.Objects.CS;
using PX.Objects.IN;
using System;

namespace Test
{
public class DXTest : PXGraphExtension<MaterialEntry>
{
    // Replaces the orignal ParentLotSerialNbrAttribute with the DXParentLotSerialNbrAttribute
    [PXMergeAttributes(Method = MergeMethod.Append)]
	[PXRemoveBaseAttribute(typeof(PX.Objects.AM.Attributes.ParentLotSerialNbrAttribute))]
    [DXParentLotSerialNbr(typeof(AMMTran.orderType), typeof(AMMTran.prodOrdID), ValidateValue = false, PersistingCheck = PXPersistingCheck.Nothing)]
    protected virtual void _(Events.CacheAttached<AMMTran.parentLotSerialNbr> e) { }
}

// The modified ParentLotSerialNbrAttribute
[PXDBString(100, IsUnicode = true, InputMask = "")]
[PXUIField(DisplayName = "Parent Lot/Serial Nbr.", FieldClass = "LotSerial")]
[PXDefault("")]
public class DXParentLotSerialNbrAttribute : PXEntityAttribute
{
    public DXParentLotSerialNbrAttribute(Type ProdOrderType, Type ProdOrdIDType)
    {
        Type itemType = BqlCommand.GetItemType(ProdOrderType);
        if (!typeof(ILSMaster).IsAssignableFrom(itemType))
        {
            throw new PXArgumentException("itemType", "The specified type {0} must implement the {1} interface.", itemType.GetLongName(), typeof(ILSMaster).GetLongName());
        }

        PXSelectorAttribute item = new PXSelectorAttribute(
            BqlCommand.Compose(typeof(Search2<,,>),
                typeof(AMProdItemSplit.lotSerialNbr),
                typeof(InnerJoin<,>), typeof(INLotSerialStatus),
                    typeof(On<,,>), typeof(INLotSerialStatus.inventoryID), typeof(Equal<>), typeof(AMProdItemSplit.inventoryID),
                        typeof(And<,,>), typeof(INLotSerialStatus.subItemID), typeof(Equal<>), typeof(AMProdItemSplit.subItemID),
                        typeof(And<,,>), typeof(INLotSerialStatus.siteID), typeof(Equal<>), typeof(AMProdItemSplit.siteID),
                        typeof(And<,,>), typeof(INLotSerialStatus.locationID), typeof(Equal<>), typeof(AMProdItemSplit.locationID),
                        typeof(And<,>), typeof(INLotSerialStatus.lotSerialNbr), typeof(Equal<>), typeof(AMProdItemSplit.lotSerialNbr),
                typeof(Where<,,>),
                    typeof(AMProdItemSplit.orderType), typeof(Equal<>), typeof(Optional<>), ProdOrderType,
                    typeof(And<,,>),
                    typeof(AMProdItemSplit.prodOrdID), typeof(Equal<>), typeof(Optional<>), ProdOrdIDType,
                    typeof(And<,>),
                    typeof(INLotSerialStatus.qtyOnHand), typeof(GreaterEqual<>), typeof(decimal0)
                ),
            typeof(AMProdItemSplit.lotSerialNbr),
            typeof(AMProdItemSplit.qty),
            typeof(AMProdItemSplit.qtyComplete),
            typeof(AMProdItemSplit.qtyScrapped),
            typeof(AMProdItemSplit.qtyRemaining));

        _Attributes.Add(item);
        _SelAttrIndex = _Attributes.Count - 1;
    }
}
}

Unfortunately, I don’t have any instances using Lot / Serial tracking right now, so I can’t test if it actually works.

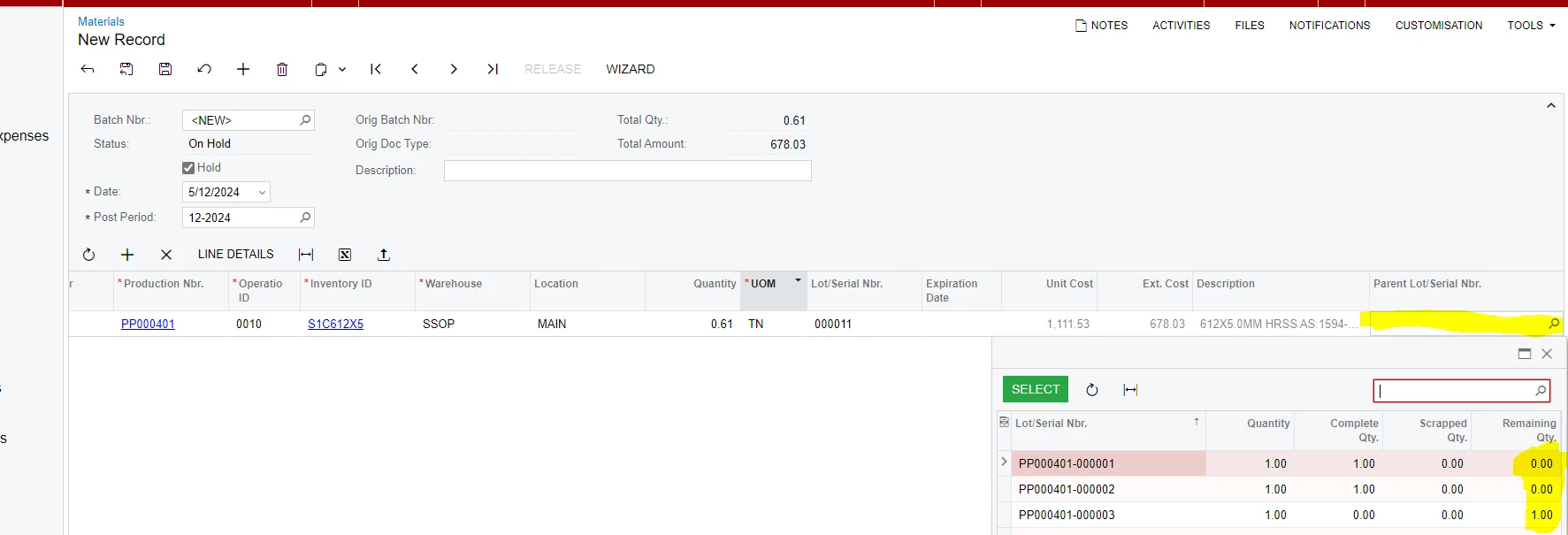

Hey ​@darylbowman thank you for letting me know regarding this logic, I tried this out but it still does not filter any records based on values greater than 0 but shows values where remaining qty is 0.00, please see below screenshot with the logic I changed as  typeof(INLotSerialStatus.qtyOnHand), typeof(Greater<>), typeof(decimal0).

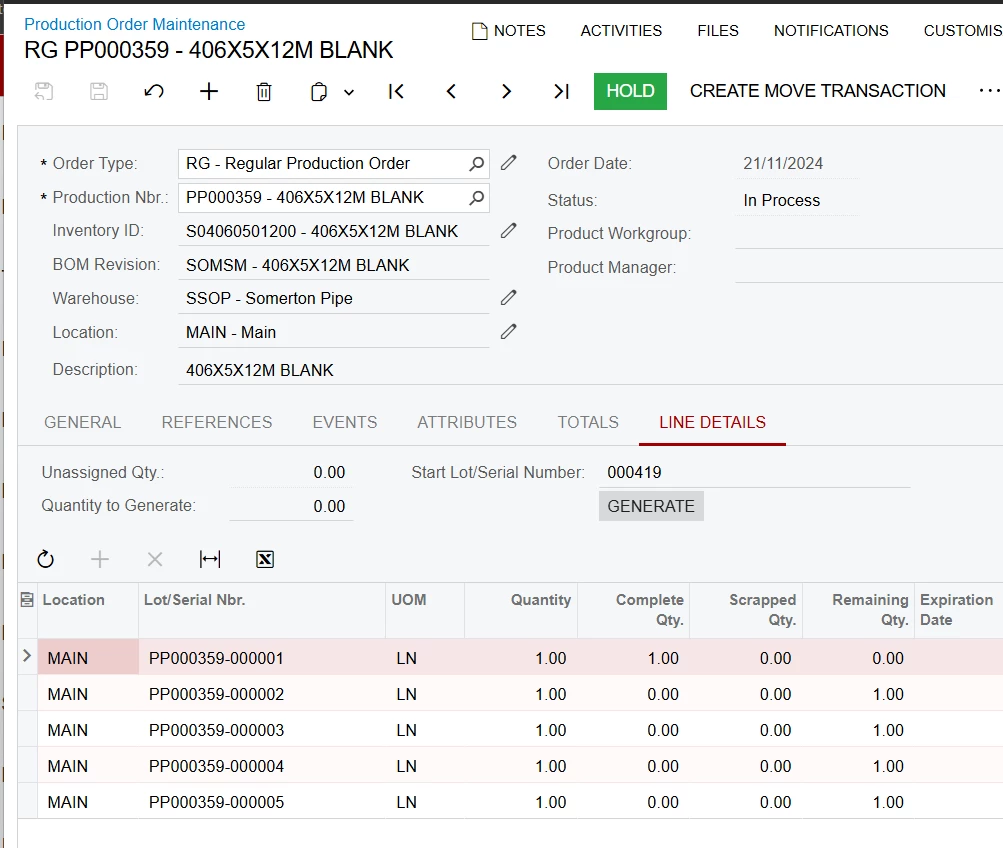

If I got to line details of the production order it shows these records where filtering is based on.

Are you saying even with the changes you made it's still not working?

Hi ​@darylbowman yes even with my modification it does not filter
