Question

Import Scenario for customized Screen

  • November 10, 2025
  • 2 replies
  • 42 views

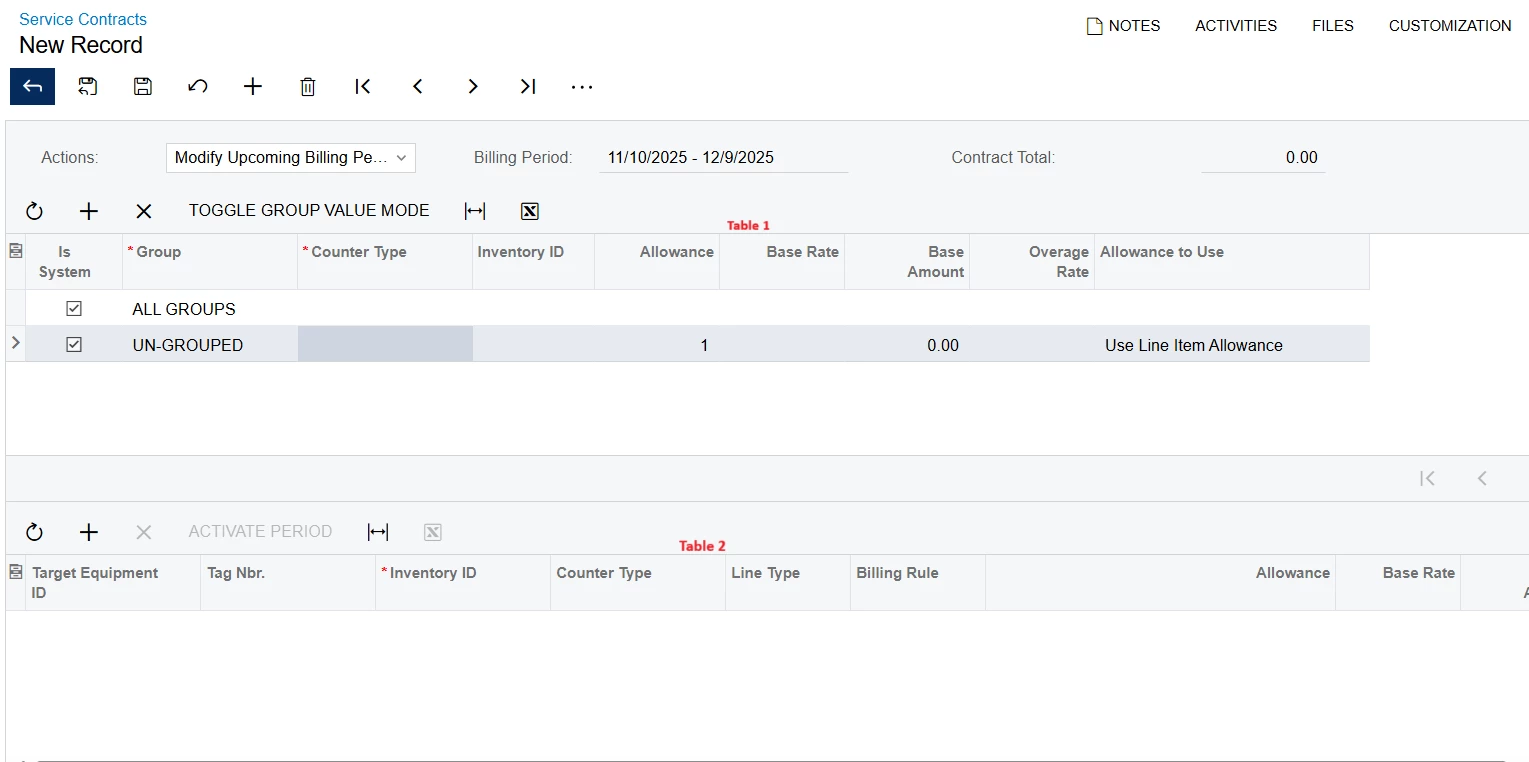

I need a help creating an import scenario for service contracts. We have a custom screen where attributes are defined in Table 1. I want to upload corresponding records into Table 2, which is dependent on Table 1.

For example:

  • Table 1 contains groups such as Group 1, Group 2, Group 3.

  • Table 2 contains equipment entries such as Equipment 1, Equipment 2, Equipment 3.

The requirement is to upload data into Table 2 using an import scenario so that:

  • When Group 1 is selected in Table 1, Equipment 2 details are displayed in Table 2.

  • When Group 2 is selected, Equipment 1 details are shown, and so on.

Please help me design an import scenario to achieve this setup.

2 replies

bwhite49
Captain II
Forum|alt.badge.img+10
  • Captain II
  • November 10, 2025

Hi Karthik,

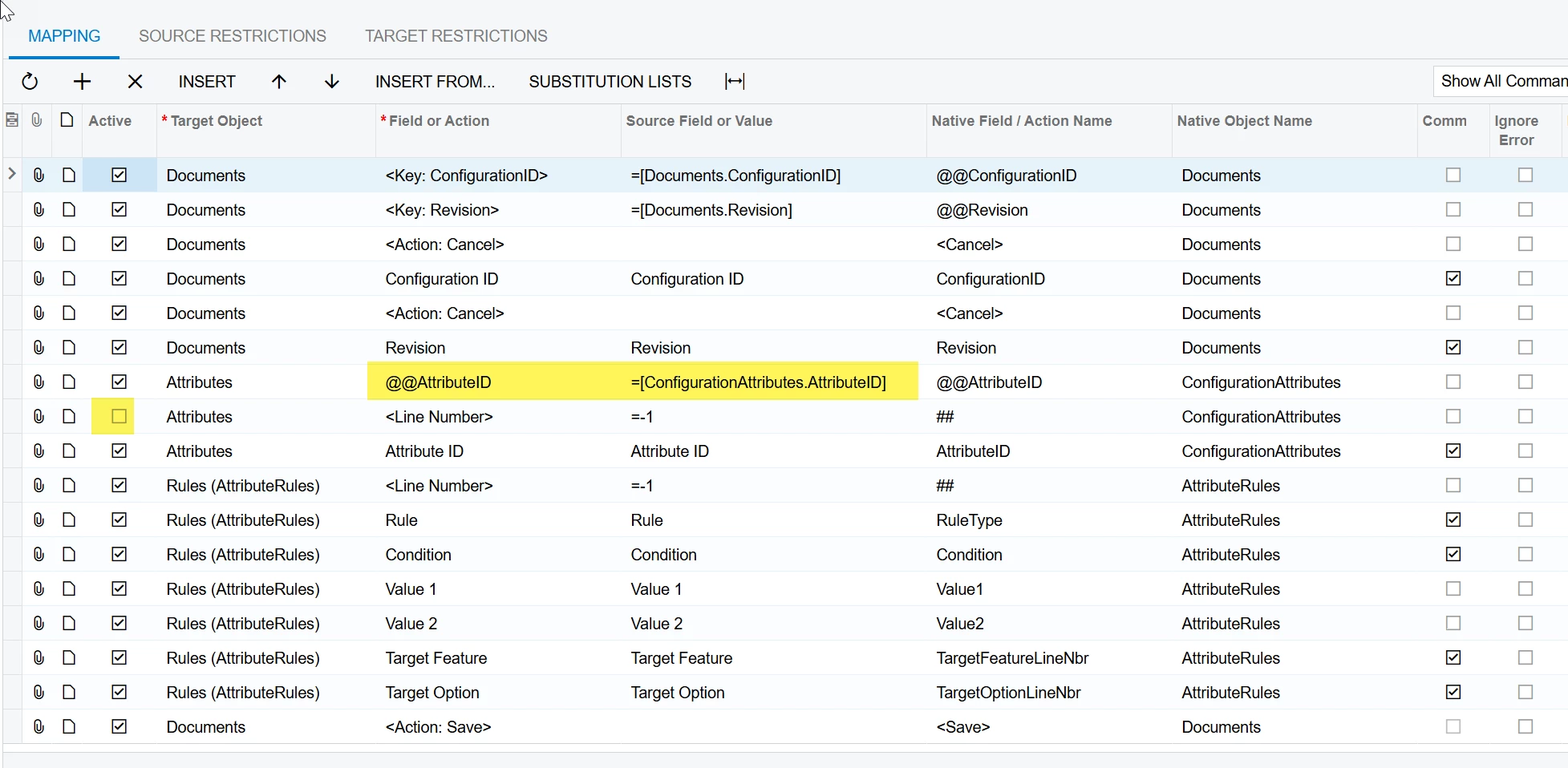

It’s hard to design an import scenario as we don’t have the field names required for the import scenario. Below is a similar import scenario for the configuration maintenance screen which is very similar to what you need (same table structures) just the wrong fields.

You need to turn off line-numbering and define the GroupID as a key field for table 1 (Attributes). So in the below example, @@GroupID, would be your key instead of @@AttributeID. AttributeRules would be your table 2.

Hopefully this makes sense.


  • Author
  • Freshman I
  • November 11, 2025

Hi Karthik,

It’s hard to design an import scenario as we don’t have the field names required for the import scenario. Below is a similar import scenario for the configuration maintenance screen which is very similar to what you need (same table structures) just the wrong fields.

You need to turn off line-numbering and define the GroupID as a key field for table 1 (Attributes). So in the below example, @@GroupID, would be your key instead of @@AttributeID. AttributeRules would be your table 2.

Hopefully this makes sense.

Thank you for your response. I appreciate it a lot
