Hello, I am working on a custom screen that has a parent record and child grid records. I am running into an issue where the grid data does not appear unless I change something in the parent record and then hit save, then the grids populate with the appropriate data. The record previously exists in the database, and I’ve confirmed it. Obviously this is not the behavior we’re looking for.
Another issue is, when I attempt to create a new record in the grid, it follows the same issue. I have to change and save the parent record and then create a new child record in the grid, otherwise it’ll throw an exception saying that the key value is null. I have added a PXParent attribute to the proper field and it works properly when the save trick is done.
I have a hunch there is something going on with the record loading fully. I added an event handler for the row selected event and then checked that the parent record was loaded, I also check the views for the grids via a .select() to see if they were populated and they have records in them.

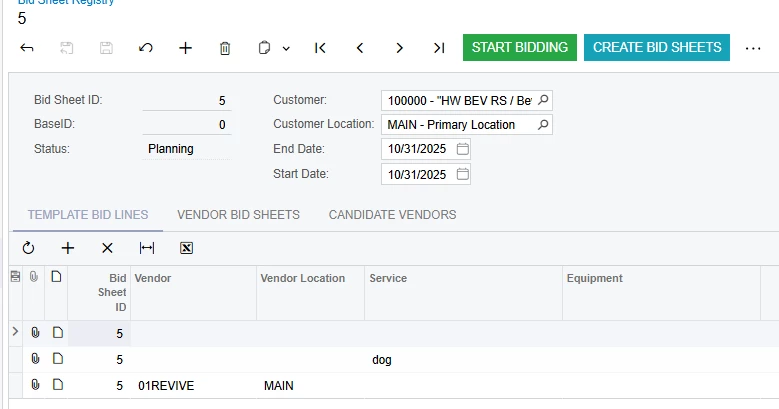

Before save

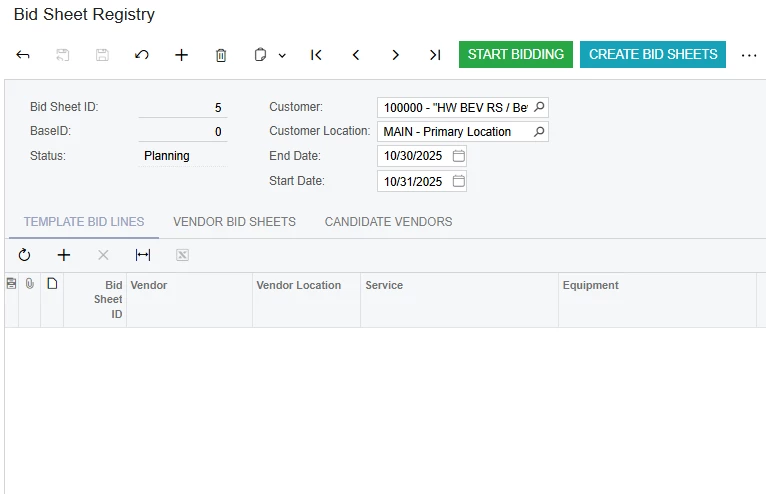

After save
Graph code:
using System;
using System.Collections;
using System.Linq;
using PX.Data;
using PX.Data.BQL.Fluent;
using PX.Objects.CR;
using static PX.Data.BQL.BqlPlaceholder;
namespace MWIBiddingEngineInternal
{
public class MWBidSheetRegistryEntry : PXGraph<MWBidSheetRegistryEntry, MWBidSheet>
{
#region Views
public SelectFrom<MWBidSheet>.View BidBaseRecords;
public SelectFrom<MWBidSheet>
.Where<MWBidSheet.baseID
.IsEqual<MWBidSheet.bidSheetID.FromCurrent>
.And<MWBidSheet.sheetType.IsEqual<MWBidSheetType.vendorType>>>
.View BidSheets = null!;
public SelectFrom<MWBidLine>
.Where<MWBidLine.bidSheetID
.IsEqual<MWBidSheet.bidSheetID.FromCurrent>>
.View BidLines = null!;
public SelectFrom<MWBidSheetVendorList>
.Where<MWBidSheetVendorList.bidSheetID
.IsEqual<MWBidSheet.bidSheetID.FromCurrent>>
.View VendorListRecords = null!;
//TODO: add prospect vendors
#endregion
#region Event Handlers
protected void _(Events.FieldUpdated<MWBidSheet.customerID> e)
{
var row = e.Row;
e.Cache.SetDefaultExt<MWBidSheet.customerLocationID>(row);
}
protected void _ (Events.FieldUpdated<MWBidSheetVendorList.vendorID> e)
{
var row = e.Row;
e.Cache.SetDefaultExt<MWBidSheetVendorList.vendorLocationID>(row);
}
protected void _(Events.FieldUpdated<MWBidLine.vendorID> e)
{
var row = e.Row;
e.Cache.SetDefaultExt<MWBidLine.vendorLocationID>(row);
}
protected void _(Events.RowSelected<MWBidSheet> e)
{
if (e.Row == null) return;
PXTrace.WriteInformation(e.Row.BidSheetID.ToString());
BidLines.View.RequestRefresh();
VendorListRecords.View.RequestRefresh();
}
#endregion
#region Actions
public PXAction<MWBidSheet> StartBidding = null!;
[PXButton(), PXUIField(
DisplayName = "Start Bidding",
MapEnableRights = PXCacheRights.Select,
MapViewRights = PXCacheRights.Select)]
protected virtual IEnumerable startBidding(PXAdapter adapter) => adapter.Get();
public PXAction<MWBidSheet> ReturnToPlanning = null!;
[PXButton(), PXUIField(
DisplayName = "Return to Planning",
MapEnableRights = PXCacheRights.Select,
MapViewRights = PXCacheRights.Select)]
protected virtual IEnumerable returnToPlanning(PXAdapter adapter) => adapter.Get();
public PXAction<MWBidSheet> CloseBidding = null!;
[PXButton(), PXUIField(
DisplayName = "Close Bidding",
MapEnableRights = PXCacheRights.Select,
MapViewRights = PXCacheRights.Select)]
protected virtual IEnumerable closeBidding(PXAdapter adapter) => adapter.Get();
public PXAction<MWBidSheet> AwardBusiness = null!;
[PXButton(), PXUIField(
DisplayName = "Award Business",
MapEnableRights = PXCacheRights.Select,
MapViewRights = PXCacheRights.Select)]
protected virtual IEnumerable awardBusiness(PXAdapter adapter) => adapter.Get();
public PXAction<MWBidSheet> Abandon = null!;
[PXButton(), PXUIField(
DisplayName = "Abandon",
MapEnableRights = PXCacheRights.Select,
MapViewRights = PXCacheRights.Select)]
protected virtual IEnumerable abandon(PXAdapter adapter) => adapter.Get();
//TODO: not implemented yet
public PXAction<MWBidSheet> GenerateProject = null!;
[PXButton(), PXUIField(
DisplayName = "GenerateProject",
MapEnableRights = PXCacheRights.Select,
MapViewRights = PXCacheRights.Select)]
protected virtual IEnumerable generateProject(PXAdapter adapter) => adapter.Get();
public PXAction<MWBidSheet> CreateBidSheets = null!;
[PXButton(), PXUIField(
DisplayName = "Create Bid Sheets",
MapEnableRights = PXCacheRights.Select,
MapViewRights = PXCacheRights.Select)]
protected virtual IEnumerable createBidSheets(PXAdapter adapter)
{
return adapter.Get();
}
#endregion
}
}ASPX:
<%@ Page Language="C#" MasterPageFile="~/MasterPages/FormTab.master" AutoEventWireup="true" ValidateRequest="false" CodeFile="MW301000.aspx.cs" Inherits="Page_MW301000" Title="Untitled Page" %>
<%@ MasterType VirtualPath="~/MasterPages/FormTab.master" %>
<asp:Content ID="cont1" ContentPlaceHolderID="phDS" Runat="Server">
<px:PXDataSource ID="ds" runat="server" Visible="True" Width="100%"
TypeName="MWIBiddingEngineInternal.MWBidSheetRegistryEntry"
PrimaryView="BidBaseRecords"
>
<CallbackCommands>
</CallbackCommands>
</px:PXDataSource>
</asp:Content>
<asp:Content ID="cont2" ContentPlaceHolderID="phF" Runat="Server">
<px:PXFormView Caption="Bid Sheet Summary" FilesIndicator="True" NoteIndicator="True" ID="form" runat="server" DataSourceID="ds" DataMember="BidBaseRecords" Width="100%" Height="" AllowAutoHide="false">
<Template>
<px:PXLayoutRule runat="server" ID="CstPXLayoutRule1" StartColumn="True" ></px:PXLayoutRule>
<px:PXNumberEdit runat="server" ID="CstPXNumberEdit13" DataField="BidSheetID" />
<px:PXNumberEdit runat="server" ID="CstPXNumberEdit3" DataField="BaseID" ></px:PXNumberEdit>
<px:PXDropDown runat="server" ID="CstPXDropDown9" DataField="Status" ></px:PXDropDown>
<px:PXLayoutRule runat="server" ID="CstPXLayoutRule2" StartColumn="True" ></px:PXLayoutRule>
<px:PXSegmentMask CommitChanges="True" runat="server" ID="CstPXSegmentMask4" DataField="CustomerID" ></px:PXSegmentMask>
<px:PXSegmentMask CommitChanges="True" runat="server" ID="CstPXSegmentMask5" DataField="CustomerLocationID" ></px:PXSegmentMask>
<px:PXDateTimeEdit runat="server" ID="CstPXDateTimeEdit7" DataField="EndDate" ></px:PXDateTimeEdit>
<px:PXDateTimeEdit runat="server" ID="CstPXDateTimeEdit8" DataField="StartDate" ></px:PXDateTimeEdit></Template>
</px:PXFormView>
</asp:Content>
<asp:Content ID="cont3" ContentPlaceHolderID="phG" Runat="Server">
<px:PXTab ID="tab" runat="server" Width="100%" Height="150px" DataSourceID="ds" AllowAutoHide="false">
<Items>
<px:PXTabItem Text="Template Bid Lines">
<Template>
<px:PXGrid Height="100%" SkinID="DetailsInTab" Width="100%" DataSourceID="ds" SyncPosition="True" runat="server" ID="CstPXGrid10">
<Levels>
<px:PXGridLevel DataMember="BidLines" >
<Columns>
<px:PXGridColumn DataField="BidSheetID" Width="70" />
<px:PXGridColumn DataField="VendorID" Width="140" ></px:PXGridColumn>
<px:PXGridColumn DataField="VendorLocationID" Width="70" ></px:PXGridColumn>
<px:PXGridColumn DataField="Service" Width="220" ></px:PXGridColumn>
<px:PXGridColumn DataField="Equipment" Width="220" ></px:PXGridColumn>
<px:PXGridColumn DataField="HaulFee" Width="100" ></px:PXGridColumn>
<px:PXGridColumn DataField="DisposalFee" Width="100" ></px:PXGridColumn>
<px:PXGridColumn DataField="MiscFee" Width="100" ></px:PXGridColumn>
<px:PXGridColumn DataField="MiscNotes" Width="280" ></px:PXGridColumn></Columns></px:PXGridLevel></Levels>
<AutoSize Enabled="True" /></px:PXGrid></Template>
</px:PXTabItem>
<px:PXTabItem Text="Vendor Bid Sheets">
<Template>
<px:PXGrid SyncPosition="True" DataSourceID="ds" Width="100%" Height="100%" runat="server" ID="CstPXGrid11" SkinID="DetailsInTab">
<Levels>
<px:PXGridLevel DataMember="BidSheets" >
<Columns>
<px:PXGridColumn DataField="BaseID" Width="70" ></px:PXGridColumn>
<px:PXGridColumn DataField="BidSheetID" Width="70" />
<px:PXGridColumn DataField="VendorID" Width="140" ></px:PXGridColumn>
<px:PXGridColumn DataField="VendorLocationID" Width="70" ></px:PXGridColumn></Columns></px:PXGridLevel></Levels>
<AutoSize Enabled="True" /></px:PXGrid></Template>
</px:PXTabItem>
<px:PXTabItem Text="Candidate Vendors" >
<Template>
<px:PXGrid DataSourceID="ds" SyncPosition="True" runat="server" ID="CstPXGrid12" SkinID="DetailsInTab" Height="100%" Width="100%">
<Levels>
<px:PXGridLevel DataMember="VendorListRecords" >
<Columns>
<px:PXGridColumn DataField="BidSheetID" Width="70" />
<px:PXGridColumn DataField="VendorID" Width="140" ></px:PXGridColumn>
<px:PXGridColumn DataField="VendorLocationID" Width="70" ></px:PXGridColumn></Columns></px:PXGridLevel></Levels>
<AutoSize Enabled="True" ></AutoSize></px:PXGrid></Template></px:PXTabItem></Items>
<AutoSize Container="Window" Enabled="True" MinHeight="150" ></AutoSize>
</px:PXTab>
</asp:Content>
MWBidSheet DAC
using MWIBiddingEngineInternal.Helpers;
using PX.Data;
using PX.Objects.AP;
using PX.Objects.AR;
using PX.Objects.CR;
using PX.Objects.CS;
using System;
namespace MWIBiddingEngineInternal
{
[Serializable]
[PXCacheName("MWBidSheet")]
[PXPrimaryGraph(typeof(MWBidSheetRegistryEntry))]
public class MWBidSheet : PXBqlTable, IBqlTable
{
//TODO add description and or CD
#region BidSheetID
[PXDBIdentity(IsKey = true)]
[PXUIField(DisplayName = "Bid Sheet ID", Enabled = false)]
public virtual int? BidSheetID { get; set; }
public abstract class bidSheetID : PX.Data.BQL.BqlInt.Field<bidSheetID> { }
#endregion
#region StartDate
[PXDBDate]
[PXUIField(DisplayName = "Start Date")]
public virtual DateTime? StartDate { get; set; }
public abstract class startDate : PX.Data.BQL.BqlDateTime.Field<startDate> { }
#endregion
#region EndDate
[PXDBDate]
[PXUIField(DisplayName = "End Date")]
public virtual DateTime? EndDate { get; set; }
public abstract class endDate : PX.Data.BQL.BqlDateTime.Field<endDate> { }
#endregion
#region Status
[PXDBString(2, IsUnicode = true, IsFixed = false)]
[PXUIField(DisplayName = "Status", Enabled = false)]
[PXDefault(BidSheetConstants.Planning)]
[PXStringList(
new string[]
{
BidSheetConstants.Planning,
BidSheetConstants.Open,
BidSheetConstants.PendingAward,
BidSheetConstants.BusinessAwarded,
BidSheetConstants.Cancelled,
BidSheetConstants.Completed
}, new string[]
{
Messages.Planning,
Messages.Open,
Messages.PendingAward,
Messages.BusinessAwarded,
Messages.Cancelled,
Messages.Completed
})]
public virtual string Status { get; set; }
public abstract class status : PX.Data.BQL.BqlString.Field<status> { }
#endregion
#region BaseID
[PXDBInt()]
[PXUIField(DisplayName = "BaseID", Enabled = false)]
public virtual int? BaseID { get; set; }
public abstract class baseID : PX.Data.BQL.BqlInt.Field<baseID> { }
#endregion
#region VendorID
[VendorActive(DisplayName = "Vendor", DescriptionField = typeof(BAccount.acctName))]
public virtual int? VendorID { get; set; }
public abstract class vendorID : PX.Data.BQL.BqlInt.Field<vendorID> { }
#endregion
#region VendorLocationID
[LocationActive(typeof(Where<Location.bAccountID, Equal<Current<vendorID>>>), DisplayName = "Vendor Location", DescriptionField = typeof(Location.descr))]
[PXDefault(typeof(Search<Vendor.defLocationID, Where<Vendor.bAccountID, Equal<Current<vendorID>>>>), PersistingCheck = PXPersistingCheck.Nothing)]
public virtual int? VendorLocationID { get; set; }
public abstract class vendorLocationID : PX.Data.BQL.BqlInt.Field<vendorLocationID> { }
#endregion
#region CustomerID
[CustomerActive(DescriptionField = typeof(Customer.acctName))]
public virtual int? CustomerID { get; set; }
public abstract class customerID : PX.Data.BQL.BqlInt.Field<customerID> { }
#endregion
#region CustomerLocationID
[LocationActive(typeof(Where<Location.bAccountID, Equal<Current<customerID>>>), DisplayName = "Customer Location", DescriptionField = typeof(Location.descr))]
[PXDefault(typeof(Search<Customer.defLocationID, Where<Customer.bAccountID, Equal<Current<customerID>>>>), PersistingCheck = PXPersistingCheck.Nothing)]
public virtual int? CustomerLocationID { get; set; }
public abstract class customerLocationID : PX.Data.BQL.BqlInt.Field<customerLocationID> { }
#endregion
#region LineCntr
[PXDBInt]
[PXDefault(0)]
public virtual int? LineCntr { get; set; }
public abstract class lineCntr : PX.Data.BQL.BqlInt.Field<lineCntr> { }
#endregion
#region SheetType
[PXDBString(2, IsUnicode = true, IsFixed = false)]
[PXUIField(DisplayName = "Sheet Type")]
[MWBidSheetType.List] // Dropdown from constants
[PXDefault(MWBidSheetType.Base)] // Optional, remove if not needed
public virtual string SheetType { get; set; }
public abstract class sheetType : PX.Data.BQL.BqlString.Field<sheetType> { }
#endregion
#region Metadata
#region Noteid
[PXNote()]
public virtual Guid? Noteid { get; set; }
public abstract class noteid : PX.Data.BQL.BqlGuid.Field<noteid> { }
#endregion
#region CreatedByID
[PXDBCreatedByID()]
public virtual Guid? CreatedByID { get; set; }
public abstract class createdByID : PX.Data.BQL.BqlGuid.Field<createdByID> { }
#endregion
#region CreatedByScreenID
[PXDBCreatedByScreenID()]
public virtual string CreatedByScreenID { get; set; }
public abstract class createdByScreenID : PX.Data.BQL.BqlString.Field<createdByScreenID> { }
#endregion
#region CreatedDateTime
[PXDBCreatedDateTime()]
public virtual DateTime? CreatedDateTime { get; set; }
public abstract class createdDateTime : PX.Data.BQL.BqlDateTime.Field<createdDateTime> { }
#endregion
#region LastModifiedByID
[PXDBLastModifiedByID()]
public virtual Guid? LastModifiedByID { get; set; }
public abstract class lastModifiedByID : PX.Data.BQL.BqlGuid.Field<lastModifiedByID> { }
#endregion
#region LastModifiedByScreenID
[PXDBLastModifiedByScreenID()]
public virtual string LastModifiedByScreenID { get; set; }
public abstract class lastModifiedByScreenID : PX.Data.BQL.BqlString.Field<lastModifiedByScreenID> { }
#endregion
#region LastModifiedDateTime
[PXDBLastModifiedDateTime()]
public virtual DateTime? LastModifiedDateTime { get; set; }
public abstract class lastModifiedDateTime : PX.Data.BQL.BqlDateTime.Field<lastModifiedDateTime> { }
#endregion
#region Tstamp
[PXDBTimestamp()]
[PXUIField(DisplayName = "Tstamp")]
public virtual byte[] Tstamp { get; set; }
public abstract class tstamp : PX.Data.BQL.BqlByteArray.Field<tstamp> { }
#endregion
#endregion
}
}MWBidLine DAC
using PX.Data;
using PX.Objects.AP;
using PX.Objects.CS;
using System;
using PX.Objects.AR;
using PX.Objects.CR;
using MWIBiddingEngineInternal.Helpers;
namespace MWIBiddingEngineInternal
{
[Serializable]
[PXCacheName("MWBidLine")]
public class MWBidLine : PXBqlTable, IBqlTable
{

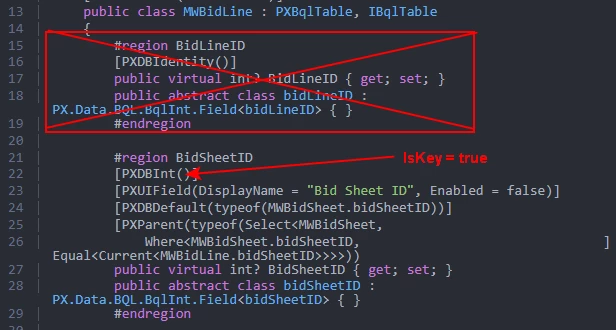

#region BidLineID
[PXDBIdentity()]
public virtual int? BidLineID { get; set; }
public abstract class bidLineID : PX.Data.BQL.BqlInt.Field<bidLineID> { }
#endregion
#region BidSheetID
[PXDBInt()]
[PXUIField(DisplayName = "Bid Sheet ID", Enabled = false)]
[PXDBDefault(typeof(MWBidSheet.bidSheetID))]
[PXParent(typeof(Select<MWBidSheet,
Where<MWBidSheet.bidSheetID, Equal<Current<MWBidLine.bidSheetID>>>>))]
public virtual int? BidSheetID { get; set; }
public abstract class bidSheetID : PX.Data.BQL.BqlInt.Field<bidSheetID> { }
#endregion
#region VendorID
[VendorActive(DisplayName = "Vendor", DescriptionField = typeof(BAccount.acctName))]
public virtual int? VendorID { get; set; }
public abstract class vendorID : PX.Data.BQL.BqlInt.Field<vendorID> { }
#endregion
#region VendorLocationID
[LocationActive(typeof(Where<Location.bAccountID, Equal<Current<vendorID>>>), DisplayName = "Vendor Location", DescriptionField = typeof(Location.descr))]
[PXDefault(typeof(Search<Vendor.defLocationID, Where<Vendor.bAccountID, Equal<Current<vendorID>>>>), PersistingCheck = PXPersistingCheck.Nothing)]
public virtual int? VendorLocationID { get; set; }
public abstract class vendorLocationID : PX.Data.BQL.BqlInt.Field<vendorLocationID> { }
#endregion
#region LineNbr
/// <inheritdoc cref="LineNbr"/>
public abstract class lineNbr : PX.Data.BQL.BqlInt.Field<lineNbr> { }
protected Int32? _LineNbr;
/// <summary>
/// The line number of the bidsheet.
/// </summary>
[PXDBInt(IsKey = true)]
[PXLineNbr(typeof(MWBidSheet.lineCntr))]
[PXUIField(DisplayName = "Line Nbr.", Visible = false)]
public virtual Int32? LineNbr
{
get
{
return this._LineNbr;
}
set
{
this._LineNbr = value;
}
}
#endregion
#region HaulFee
[PXDBDecimal()]
[PXUIField(DisplayName = "Haul Fee")]
public virtual Decimal? HaulFee { get; set; }
public abstract class haulFee : PX.Data.BQL.BqlDecimal.Field<haulFee> { }
#endregion
#region DisposalFee
[PXDBDecimal()]
[PXUIField(DisplayName = "Disposal Fee")]
public virtual Decimal? DisposalFee { get; set; }
public abstract class disposalFee : PX.Data.BQL.BqlDecimal.Field<disposalFee> { }
#endregion
#region MiscFee
[PXDBDecimal()]
[PXUIField(DisplayName = "Misc Fee")]
public virtual Decimal? MiscFee { get; set; }
public abstract class miscFee : PX.Data.BQL.BqlDecimal.Field<miscFee> { }
#endregion
#region MiscNotes
[PXDBString(255, IsUnicode = true, InputMask = "")]
[PXUIField(DisplayName = "Misc Notes")]
public virtual string MiscNotes { get; set; }
public abstract class miscNotes : PX.Data.BQL.BqlString.Field<miscNotes> { }
#endregion
#region Equipment
[PXDBString(60, IsUnicode = true, InputMask = "")]
[PXUIField(DisplayName = "Equipment")]
public virtual string Equipment { get; set; }
public abstract class equipment : PX.Data.BQL.BqlString.Field<equipment> { }
#endregion
#region Service
[PXDBString(60, IsUnicode = true, InputMask = "")]
[PXUIField(DisplayName = "Service")]
public virtual string Service { get; set; }
public abstract class service : PX.Data.BQL.BqlString.Field<service> { }
#endregion
#region ServiceScheduleType
[PXDBString(15, IsUnicode = true, InputMask = "")]
[PXUIField(DisplayName = "Service Schedule Type")]
public virtual string ServiceScheduleType { get; set; }
public abstract class serviceScheduleType : PX.Data.BQL.BqlString.Field<serviceScheduleType> { }
#endregion
#region ServiceDaysMask
[PXDBInt()]
[PXUIField(DisplayName = "Service Days Mask")]
public virtual int? ServiceDaysMask { get; set; }
public abstract class serviceDaysMask : PX.Data.BQL.BqlInt.Field<serviceDaysMask> { }
#endregion
#region RecurrenceIntervalWeek
[PXDBInt()]
[PXUIField(DisplayName = "Recurrence Interval Week")]
public virtual int? RecurrenceIntervalWeek { get; set; }
public abstract class recurrenceIntervalWeek : PX.Data.BQL.BqlInt.Field<recurrenceIntervalWeek> { }
#endregion
#region Noteid
[PXNote()]
public virtual Guid? Noteid { get; set; }
public abstract class noteid : PX.Data.BQL.BqlGuid.Field<noteid> { }
#endregion
#region CreatedByID
[PXDBCreatedByID()]
public virtual Guid? CreatedByID { get; set; }
public abstract class createdByID : PX.Data.BQL.BqlGuid.Field<createdByID> { }
#endregion
#region CreatedByScreenID
[PXDBCreatedByScreenID()]
public virtual string CreatedByScreenID { get; set; }
public abstract class createdByScreenID : PX.Data.BQL.BqlString.Field<createdByScreenID> { }
#endregion
#region CreatedDateTime
[PXDBCreatedDateTime()]
public virtual DateTime? CreatedDateTime { get; set; }
public abstract class createdDateTime : PX.Data.BQL.BqlDateTime.Field<createdDateTime> { }
#endregion
#region LastModifiedByID
[PXDBLastModifiedByID()]
public virtual Guid? LastModifiedByID { get; set; }
public abstract class lastModifiedByID : PX.Data.BQL.BqlGuid.Field<lastModifiedByID> { }
#endregion
#region LastModifiedByScreenID
[PXDBLastModifiedByScreenID()]
public virtual string LastModifiedByScreenID { get; set; }
public abstract class lastModifiedByScreenID : PX.Data.BQL.BqlString.Field<lastModifiedByScreenID> { }
#endregion
#region LastModifiedDateTime
[PXDBLastModifiedDateTime()]
public virtual DateTime? LastModifiedDateTime { get; set; }
public abstract class lastModifiedDateTime : PX.Data.BQL.BqlDateTime.Field<lastModifiedDateTime> { }
#endregion
#region Tstamp
[PXDBTimestamp()]
[PXUIField(DisplayName = "Tstamp")]
public virtual byte[] Tstamp { get; set; }
public abstract class tstamp : PX.Data.BQL.BqlByteArray.Field<tstamp> { }
#endregion
}
}
