Answer

Add section to header New UI

  • July 15, 2025
  • 5 replies
  • 93 views
V
Freshman I
Forum|alt.badge.img

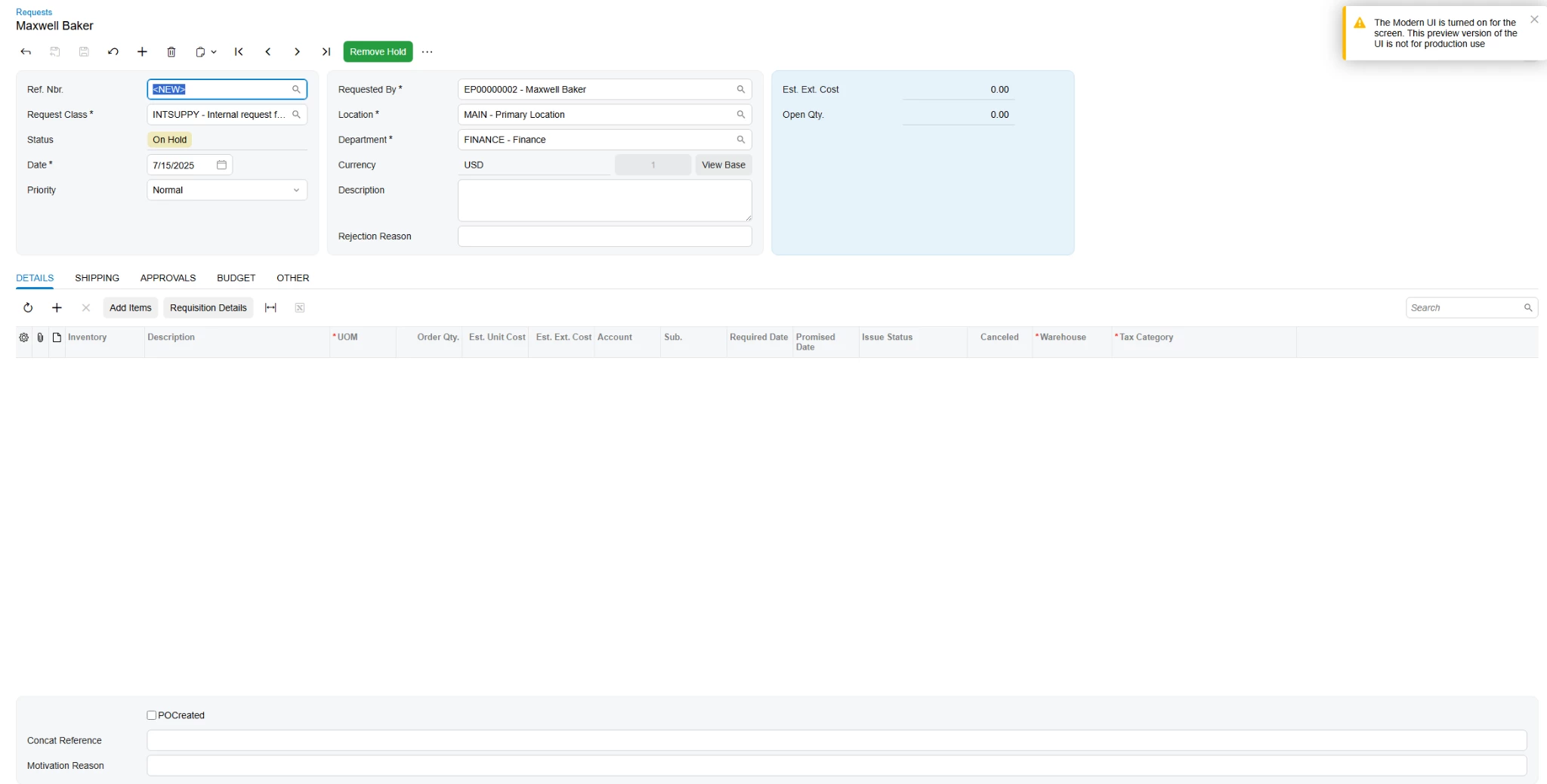

I have next problem. I am trying to add section to the right to blue section but it’s displayed on the bottom of the screen


How I can make it correct?


<template>

  <qp-fieldset id="fsColumnD-Request" view.bind="Document">

      <field name="UsrPOCreated"></field>

      <field name="UsrConcatReference"></field>

      <field name="UsrMotivationReason"></field>

  </qp-fieldset>

<field after="#fsColumnB-Request [name='Description']" name="UsrRejectReason"></field>

<field after="#grid-Details [name='InventoryID']" name="UsrWarehouse"></field>

<field after="#grid-Details [name='UsrWarehouse']" name="UsrTaxCategory"></field>

</template>

Best answer by aiwan

​@VadymBoichenko96



The Modern UI is limited, by default, to 3 columns in the ‘header’ section of a form.

I have seen a way to add another column, but this is not recommended by Acumatica.

Here is a link that shows how to do it:

How to add more than three columns to the Form template in Modern UI? | Community

5 replies

A
Jr Varsity II
Forum|alt.badge.img+2

​Hello, @VadymBoichenko96

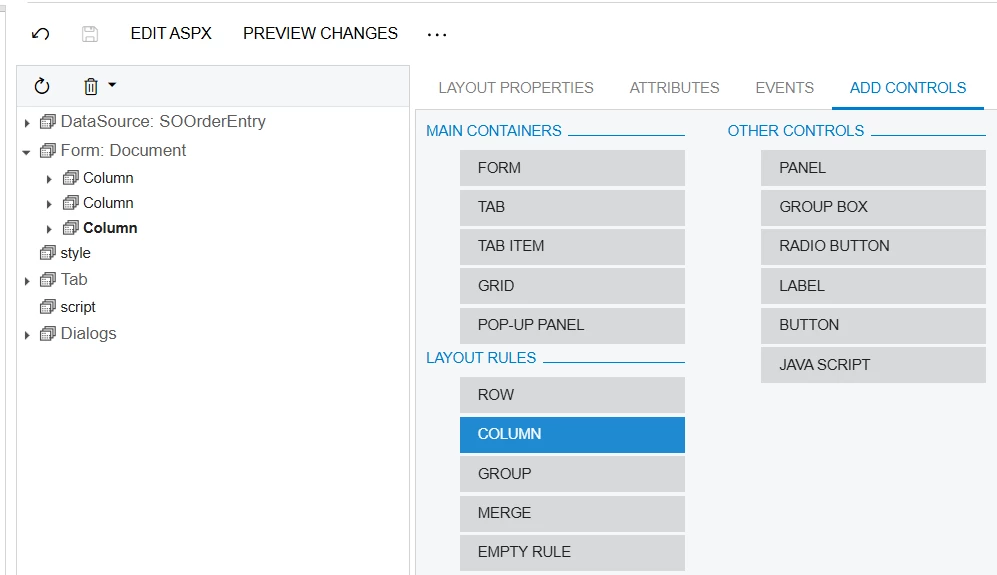

You can go to  Customization Editor & Add Column first then add your Fields


Then You able to see Section beside Blue section.

I hope it Helps!

Abhishek Nikam https://www.linkedin.com/in/abhisheknikam3
Chris Hackett
V
Freshman I
Forum|alt.badge.img

​@Abhishek Niikam Hello. I have this approach and it’s works for old UI but not for new UI



darylbowman
Captain II
Forum|alt.badge.img+15

I can tell you why. I can’t tell you how to fix it (or if it’s possible / smart).

RQ301000.html (exerpt)

<template>
	<qp-template id="form-Request" name="7-10-7" class="equal-height" qp-collapsible wg-container="document_form">
		<qp-fieldset id="fsColumnA-Request" slot="A" view.bind="Document">
			// fields
		</qp-fieldset>
		<qp-fieldset id="fsColumnB-Request" slot="B" view.bind="Document">
			// fields
		</qp-fieldset>
		<qp-fieldset id="fsColumnC-Request" slot="C" view.bind="Document" class="highlights-section">
			// fields
		</qp-fieldset>
	</qp-template>

Notice <qp-template id="form-Request" name="7-10-7"

This displays three columns, where fieldset fsColumnA-Request is in slot ‘A’, fsColumnB-Request in ‘B’, and fsColumnC-Request in ‘C’.



Daryl ⚡Freelance Acumatica Developer (MVP🏆) for hire ⏩ linkedin.com/in/darylbowman
Chris Hackett
RohitRattan88
A
V
Freshman I
Forum|alt.badge.img

​@darylbowman  Hello. Thanks. Yeah, i saw that but haven’t found a way how to add one more column to header

darylbowman
Chris Hackett
A
Captain II
Forum|alt.badge.img+8
  • aiwan
  • Captain II
  • Answer
  • July 16, 2025

​@VadymBoichenko96



The Modern UI is limited, by default, to 3 columns in the ‘header’ section of a form.

I have seen a way to add another column, but this is not recommended by Acumatica.

Here is a link that shows how to do it:

How to add more than three columns to the Form template in Modern UI? | Community

Aleks
Chris Hackett
RohitRattan88
